Starting System Location Index

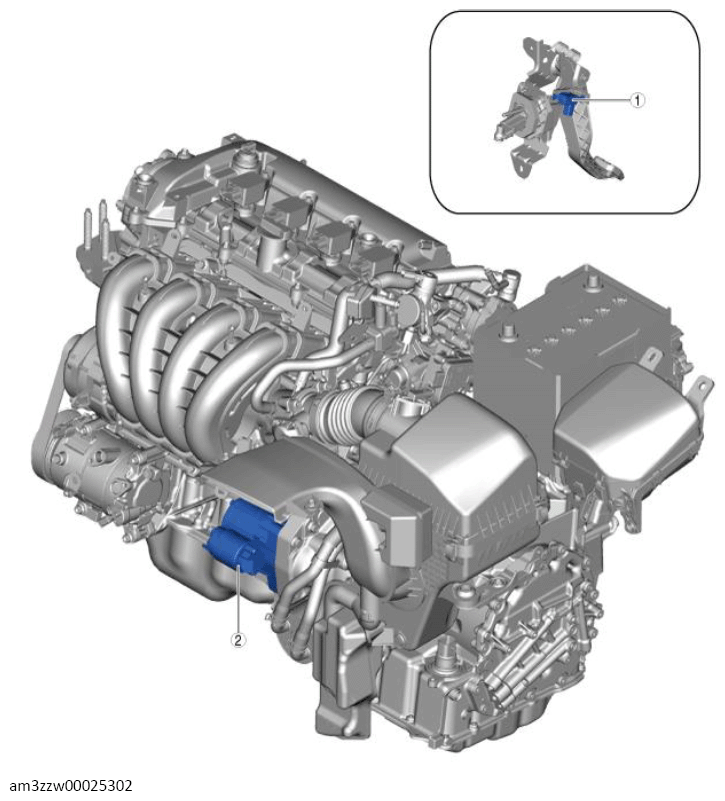

G13557565Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Starter interlock switch (MTX)
(See STARTER INTERLOCK SWITCH INSPECTION .)
2 Starter
(See STARTER REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .)
(See STARTER INSPECTION .)
(See STARTER DISASSEMBLY/ASSEMBLY .)
