DTC U0336-00: Sophisticated Airbag Sensor (SAS) Control Module Error: Outline

DTC U0336:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location Sophisticated Airbag Sensor (SAS) control module error
Detection condition
  • When any of the following conditions is met:
    • CAN communication line malfunction between Sophisticated Airbag Sensor (SAS) control module and PCM
    • Sophisticated Airbag Sensor (SAS) control module internal malfunction
Fail-safe
  • Not applicable
Possible cause
  • CAN drive error (Sophisticated Airbag Sensor (SAS) control module or PCM)
  • CAN communication line malfunction between Sophisticated Airbag Sensor (SAS) control module and PCM
  • Sophisticated Airbag Sensor (SAS) control module connector or terminals malfunction
  • PCM connector or terminals malfunction
  • Sophisticated Airbag Sensor (SAS) control module malfunction
  • PCM malfunction

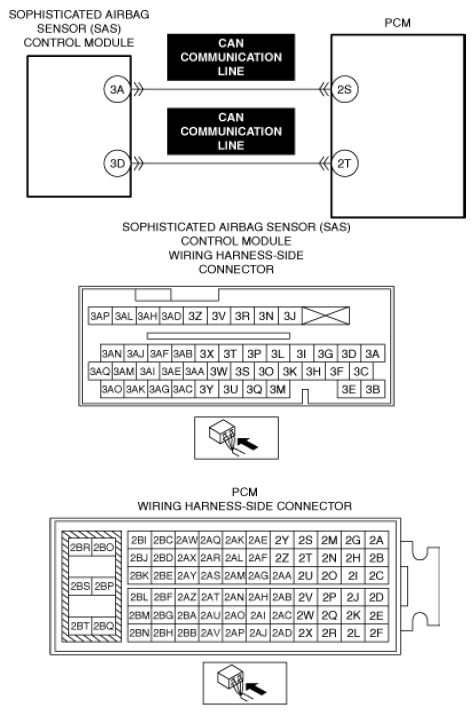

G13556271Courtesy of MAZDA MOTORS CORP.
