Setting method by operation of remote transmitter button

• The following setting can be changed by operation of the remote transmitter button.

SETTING METHOD BY OPERATION OF REMOTE TRANSMITTER BUTTON

M-MDS display	Function	Initial setting	Setting content	Control unit
Keyless Lock Beep Volume.	The keyless beeper volume can be adjusted.	Medium	Off/Low/Medium/High	Start stop unit

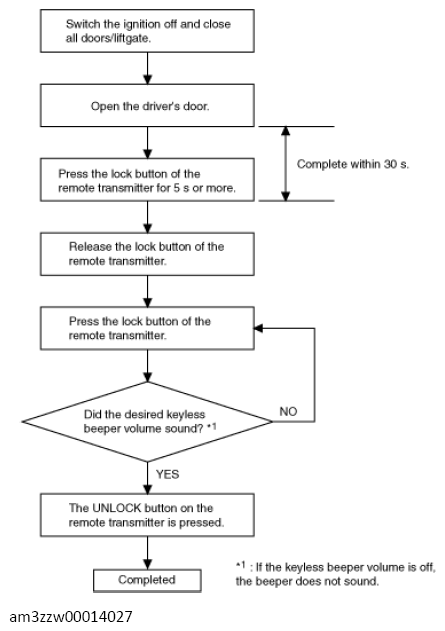

• Change the setting for the keyless beeper volume referring to the following procedure:

NOTE:

• If any of the following conditions is met during procedure, the setting for changing the keyless beeper volume is finished.

• The ignition is switched to ACC or ON (engine off or on).
• The driver's door is closed.
• The liftgate is open.
• The remote transmitter operation is not performed for approx. 10 s.
• The UNLOCK button on the remote transmitter is pressed.
• A request switch is pressed.
