Audio Unit Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    2. Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    4. Meter hood No. 1 (See METER HOOD REMOVAL/INSTALLATION .)

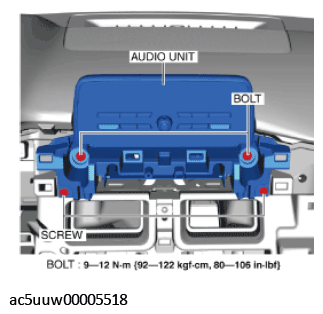

  3. Remove the bolts.
    Fig 1: Locating Audio Unit Bolt
    G11426037Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.

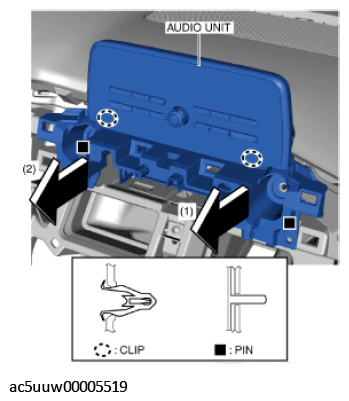

  5. Pull the audio unit in the direction of the arrow in the order of (1), (2) while detaching the clips and pins.
    Fig 2: Pulling Audio Unit Clips And Pin
    G11426038Courtesy of MAZDA MOTORS CORP.

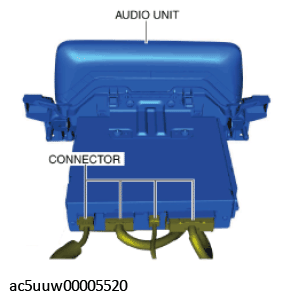

  6. Disconnect the connectors.
    Fig 3: Locating Audio Unit Connector
    G11426039Courtesy of MAZDA MOTORS CORP.
  7. Remove the audio unit.
  8. Install in the reverse order of removal.
