Tweeter Removal/Installation
WARNING: This page is about a different car, the 2017 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION .)

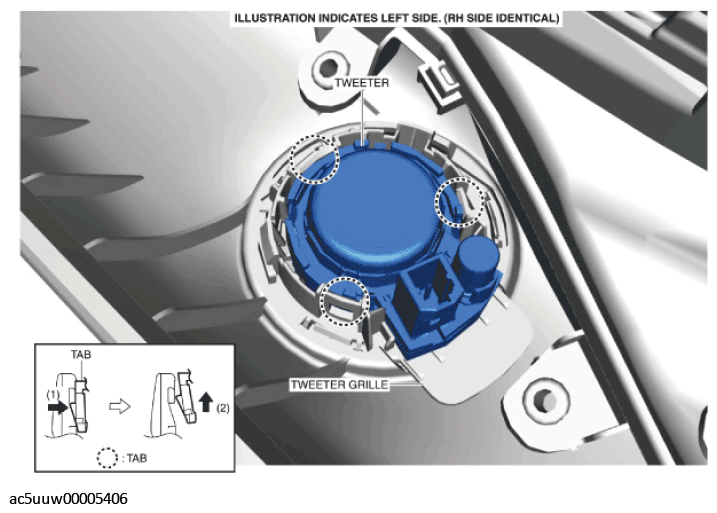

- Move the tabs in the order of arrows (1) and (2) shown in the figure and detach the tabs from the tweeter grille.
- Remove the tweeter.
- Install in the reverse order of removal.
