Light Switch

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
Verify that the continuity between the light switch terminals is as indicated in the table.

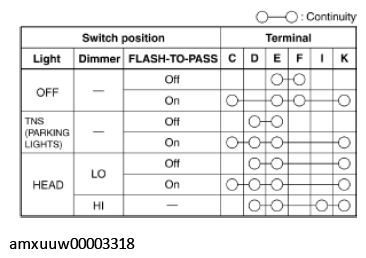

Without auto light system

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.

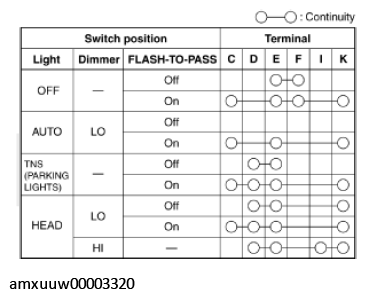

With auto light system

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION .)
