Rear Combination Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Fogging or condensation on the inside of the rear combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the rear combination lights rises after illuminating a rear turn light or a period of time has elapsed.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Partially peel back the trunk side trim. (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)

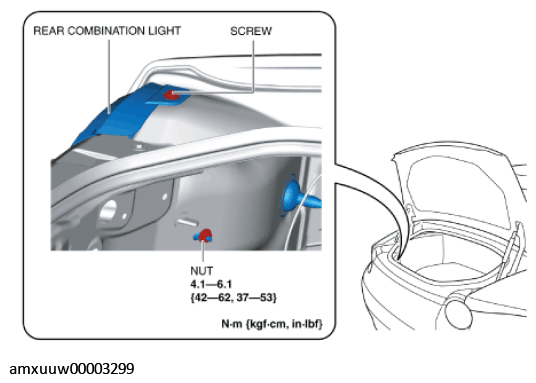

  4. Remove the screw.
    Fig 1: Rear Combination Light, Screw And Nut With Torque Specification
    G11275456Courtesy of MAZDA MOTORS CORP.
  5. Remove the nut.
    CAUTION:
    • When removing the rear combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the rear combination light from the body, apply protective tape to the body.
    • Do not use tape that has a strong adhesion strength, otherwise the paint coat may peel off.

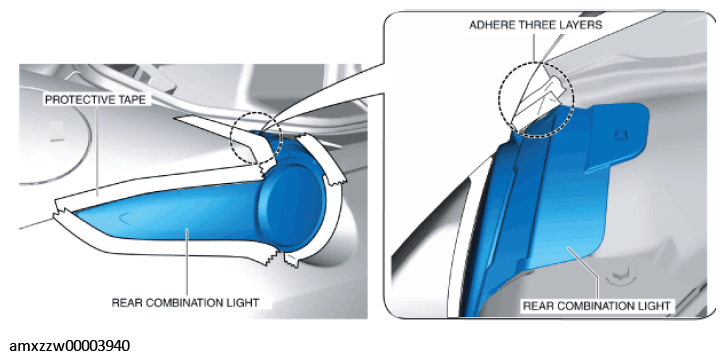

  6. To prevent scratches or damage, affix protective tape to the position shown in the figure.
    G11275457Courtesy of MAZDA MOTORS CORP.

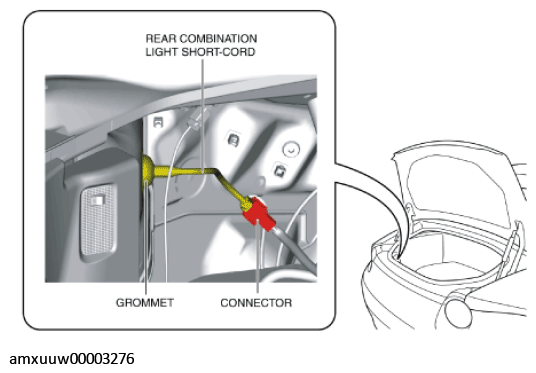

  7. Press the grommet to the outside from inside the body.
    G11275458Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Disconnect the connector shown in the figure when removing the rear combination light and the short cord as a single unit.

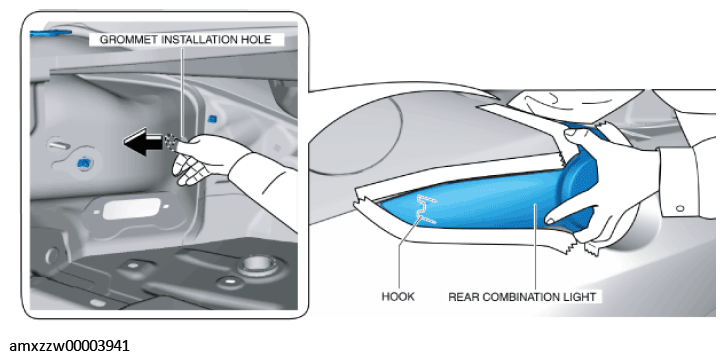

  8. Support the rear combination light.
    G11275459Courtesy of MAZDA MOTORS CORP.
  9. Insert your finger into the grommet installation hole and push the rear combination light in the direction of the arrow shown in the figure, and detach the hook.

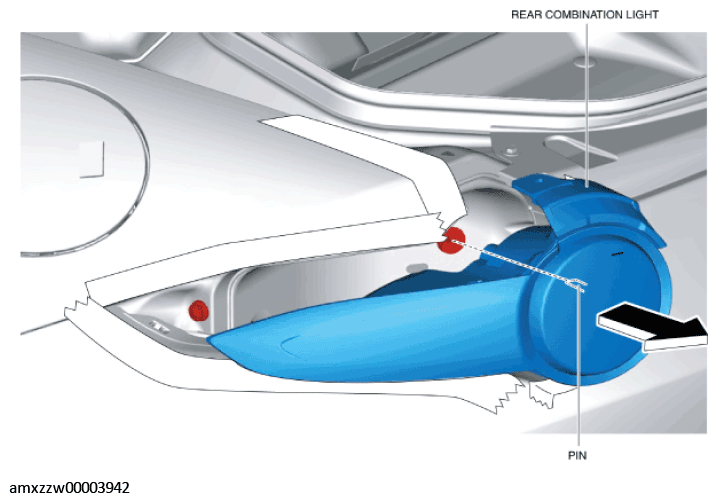

  10. Pull the rear combination light in the direction of the arrow shown in the figure and pull out the pin from the body.
    G11275460Courtesy of MAZDA MOTORS CORP.

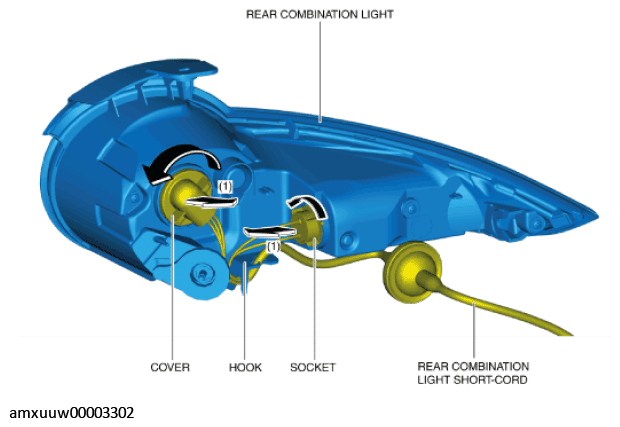

  11. Pull out the rear combination light short-cord from the hook.
    G11275461Courtesy of MAZDA MOTORS CORP.
  12. Turn the socket and cover counterclockwise and remove them in the direction of arrows (1) shown in the figure.

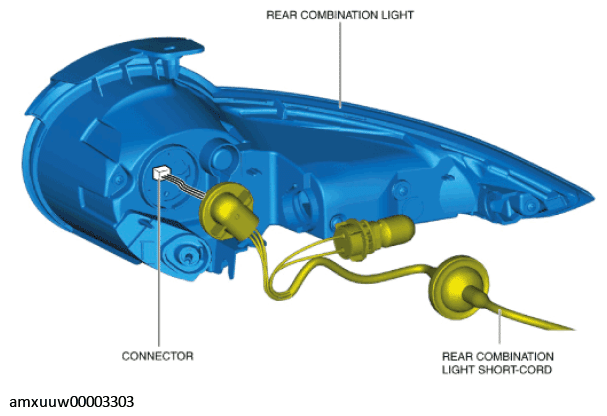

  13. Disconnect the connector.
    G11275462Courtesy of MAZDA MOTORS CORP.

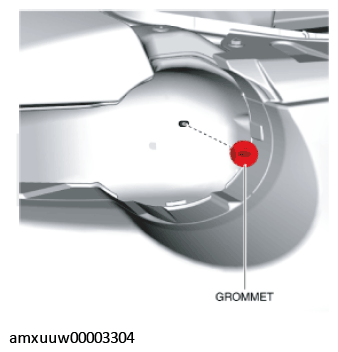

  14. Remove the grommet. (See GROMMET INSTALLATION NOTE .)
    G11275463Courtesy of MAZDA MOTORS CORP.
  15. Install in the reverse order of removal.
