HVAC Control System Location Index (Auto A/C)

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

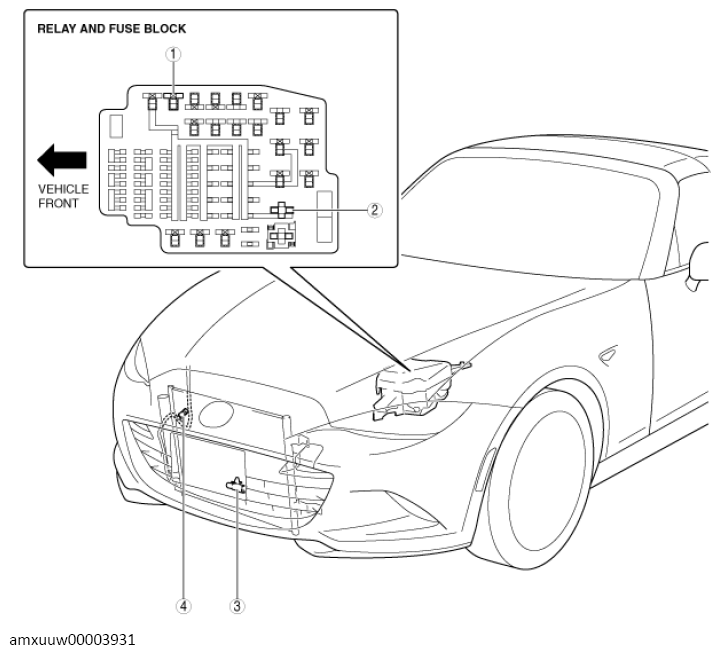

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	A/C relay (See RELAY LOCATION .) (See RELAY INSPECTION .)
2	Blower relay (See RELAY LOCATION .) (See RELAY INSPECTION .)
3	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See AMBIENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
4	Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See REFRIGERANT PRESSURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)

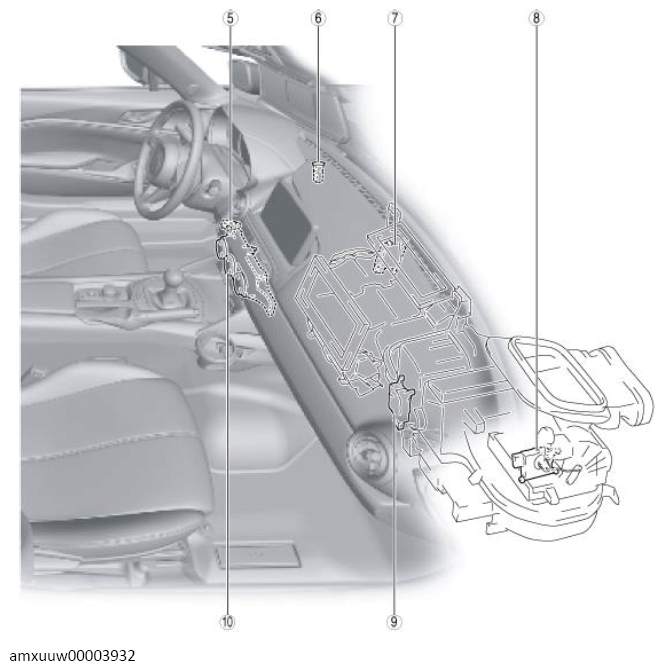

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

5	Passenger compartment temperature sensor (See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
6	Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See SOLAR RADIATION SENSOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
7	Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See AIRFLOW MODE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
8	Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See AIR INTAKE ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
9	Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See AIR MIX ACTUATOR INSPECTION [FULL-AUTO AIR CONDITIONER] .)
10	Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See CLIMATE CONTROL UNIT INSPECTION [FULL-AUTO AIR CONDITIONER] .)
