Rear Map Light

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Sunroof seaming welt (with sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Front map light (See MAP LIGHT REMOVAL/INSTALLATION .)
    4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Front side trim (RH) (with center display) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    7. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    8. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    9. Adjust anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    10. Upper anchor installation bolt on the seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    11. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    12. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    13. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    14. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    15. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    16. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    17. D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION .)
    18. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    19. Headliner (See HEADLINER REMOVAL/INSTALLATION .)

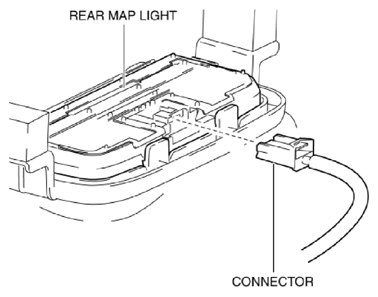

  3. Disconnect the connector.
    Fig 1: Disconnecting Connector
    G10939326Courtesy of MAZDA MOTORS CORP.

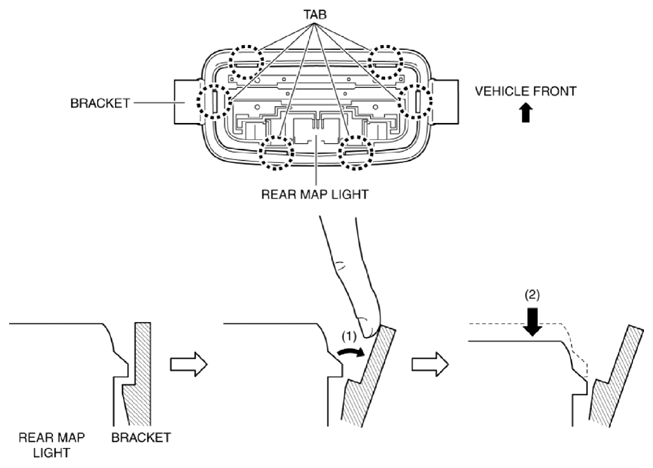

  4. Move the bracket in the direction of the arrow (1) shown in the figure, press the rear map light in the direction of the arrow (2) shown in the figure, and detach the rear map light tab and bracket.
    Fig 2: Detaching Rear Map Light Tab And Bracket
    G10939327Courtesy of MAZDA MOTORS CORP.
  5. Detach all the rear map light tabs and bracket and remove the rear map light from the bracket.
    Fig 3: Removing Rear Map Light From Bracket
    G10939328Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If the rear map light is removed from the bracket, the rear map light may fall off and be damaged. When removing the rear map light from the bracket, hold the rear map light on the lens side with a hand during servicing.
  6. Install in the reverse order of removal.
