Door Module Panel Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
Remove the pressure sensor. (with pressure sensor) (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
NOTE:
- After removing the door trim, temporarily secure the inner handle using the screws so that the procedure is performed smoothly.

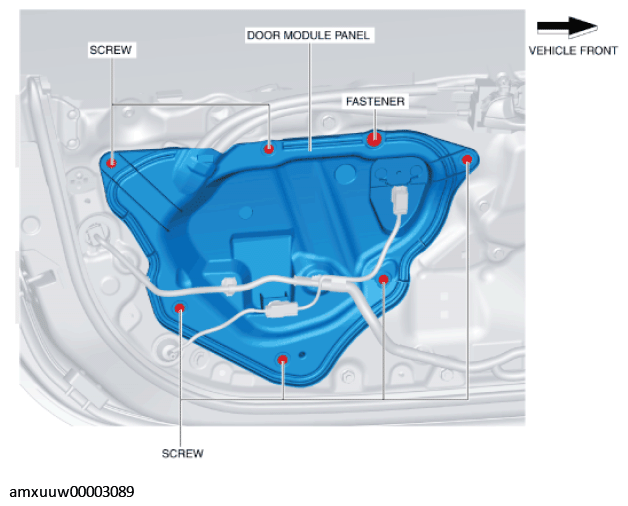

Remove the screws and fastener.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the protector part of the door module panel does not come out easily from the door inner panel, pulling the door module panel forcibly may cause it to deform. Remove the door module panel while gradually removing the adhered protector part.

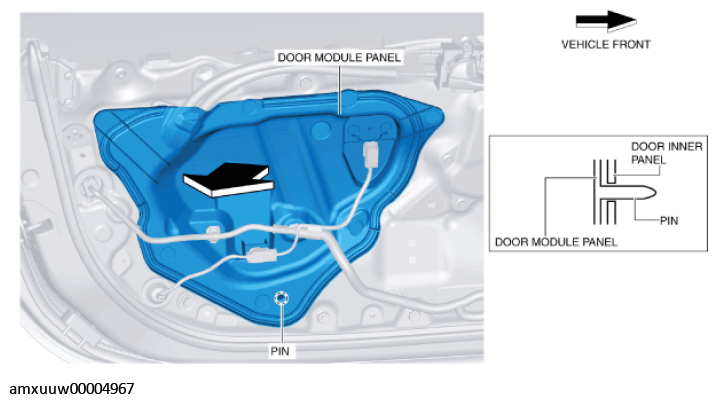

Move the door module panel in the direction of the arrow shown in the figure and pull the door module panel pin out of the door inner panel.

Courtesy of MAZDA MOTORS CORP.

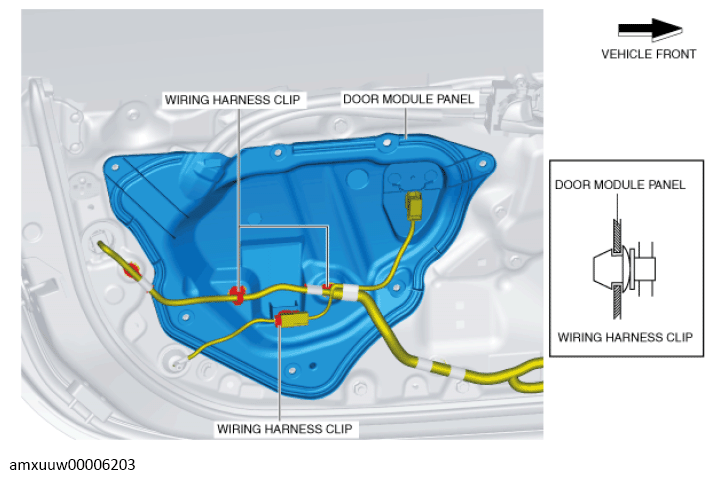

Remove the wiring harness clips and set the door wiring harness aside.
NOTE:
- The wiring harness clip removal is easier if the work is performed from the backside of the door module panel.
Courtesy of MAZDA MOTORS CORP.
Remove the door module panel.
Install in the reverse order of removal.
