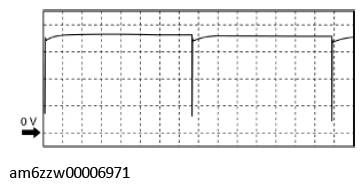

Inspection Using An Oscilloscope (reference)
Inspection Using An Oscilloscope (Reference)
| Oscilloscope setting: | Terminal | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Ignition | Shift lever position | Vehicle speed | Front corner ultrasonic sensor (LH) | Front ultrasonic sensor (LH) | Front ultrasonic sensor (RH) | Front corner ultrasonic sensor (RH) | Rear corner ultrasonic sensor (LH) | Rear ultrasonic sensor (LH) | Rear ultrasonic sensor (RH) | Rear corner ultrasonic sensor (RH) |
| ON (engine off or on) | Except R position | 0-15 km/h {0-9.3 mph} or less | I-J | K-J | M-J | O-J | - | - | - | - |
| R position | I-J | - | - | O-J | E-F | A-B | C-D | G-F | ||
