DTC U0323-00: Instrument Cluster Error: Notes
DTC U0323:00 DETECTION CONDITION AND POSSIBLE CAUSE
| DTC U0323:00 |
Instrument cluster error |
| DETECTION CONDITION |
- When any of the following conditions is met:
- CAN communication line malfunction between instrument cluster and PCM
- Instrument cluster internal malfunction
Diagnostic support note
- This is a continuous monitor (other).
- The check engine light does not illuminate.
- FREEZE FRAME DATA is not available.
- Snapshot data is available.
- DTC is stored in the PCM memory.
|
| FAIL-SAFE FUNCTION |
|
| POSSIBLE CAUSE |

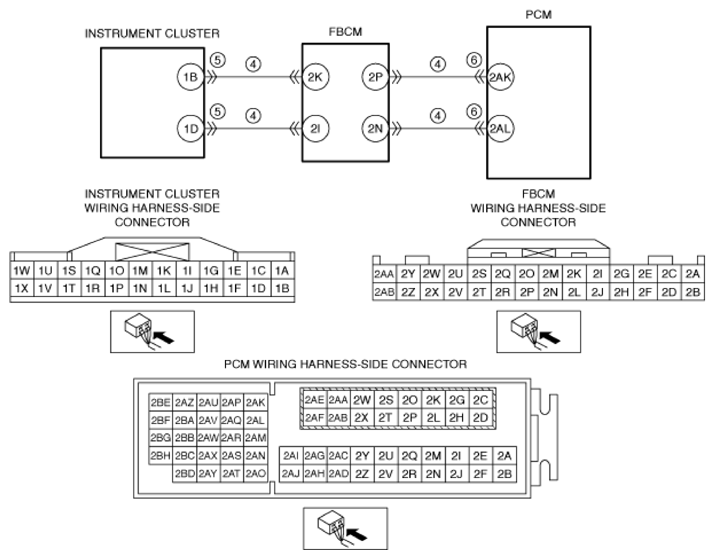

- CAN drive error (instrument cluster or PCM)
- CAN communication line malfunction between instrument cluster and PCM
- Instrument cluster terminal 1B-Front body control module (FBCM) terminal 2K
- Instrument cluster terminal 1D-Front body control module (FBCM) terminal 2I
- Front body control module (FBCM) terminal 2P-PCM terminal 2AK
- Front body control module (FBCM) terminal 2N-PCM terminal 2AL
- Instrument cluster connector or terminals malfunction
- PCM connector or terminals malfunction
- Instrument cluster malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
