Trunk Lid Weatherstrip Installation: Notes

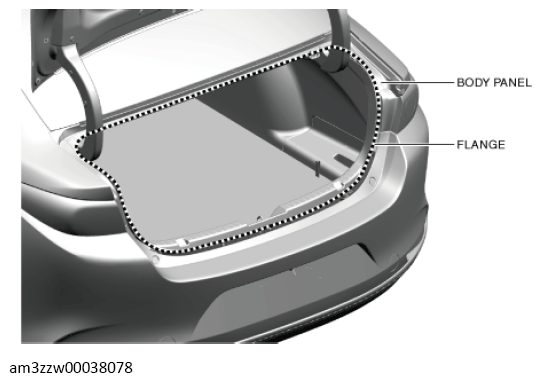

  1. Clean along the entire perimeter of the flange of the body panel.
    G13717826Courtesy of MAZDA MOTORS CORP.

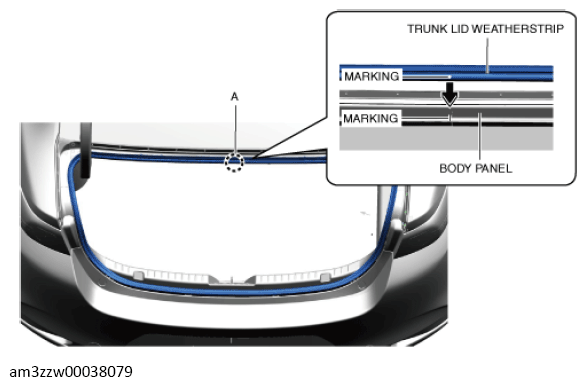

  2. Align the trunk lid weatherstrip marking with the body panel marking and install area A of the trunk lid weatherstrip.
    G13717827Courtesy of MAZDA MOTORS CORP.

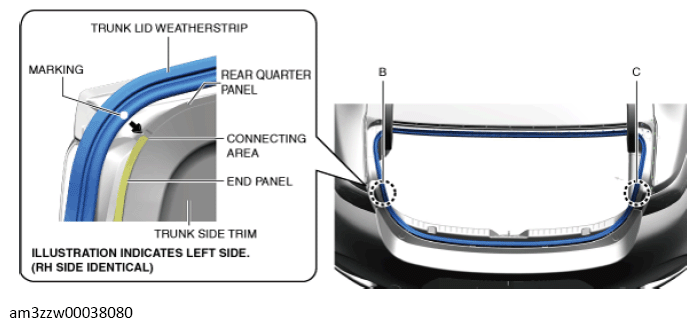

  3. Align the trunk lid weatherstrip marking with the connecting area of the body panel and install areas B and C of the trunk lid weatherstrip.
    G13717828Courtesy of MAZDA MOTORS CORP.

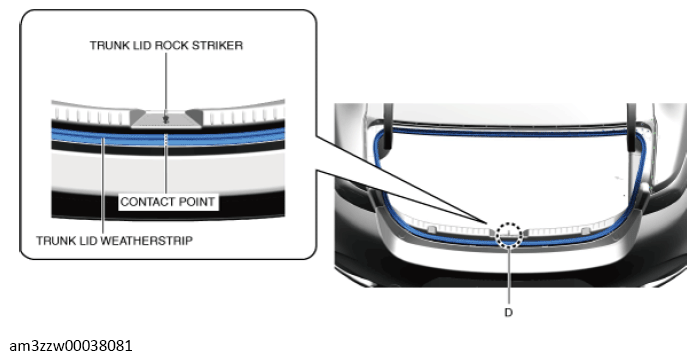

  4. Align the contact point of the trunk lid weatherstrip with the trunk lid lock striker and install area D of the trunk lid weatherstrip.
    G13717829Courtesy of MAZDA MOTORS CORP.

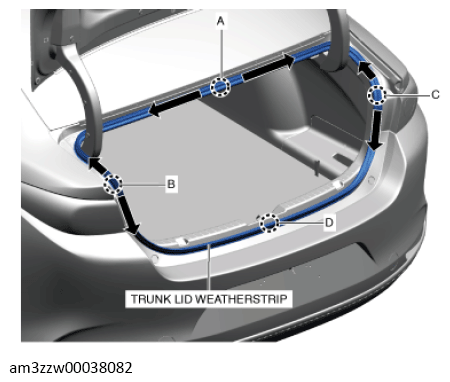

  5. Install the trunk lid weatherstrip around the entire perimeter in the directions of the arrows shown in the figure.
    G13717830Courtesy of MAZDA MOTORS CORP.

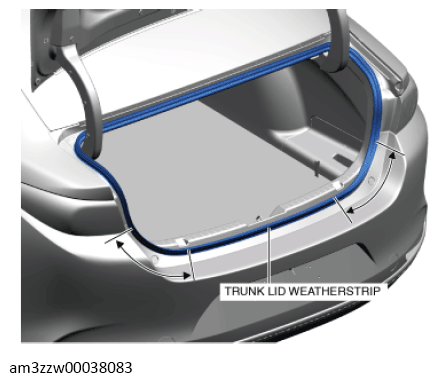

  6. Press in the trunk lid weatherstrip at the corner areas again.
    G13717831Courtesy of MAZDA MOTORS CORP.
