Upper Face Disassembly/Assembly: Notes

Replacement part

1. Disassemble in the order indicated in the table.

   Courtesy of MAZDA MOTORS CORP.

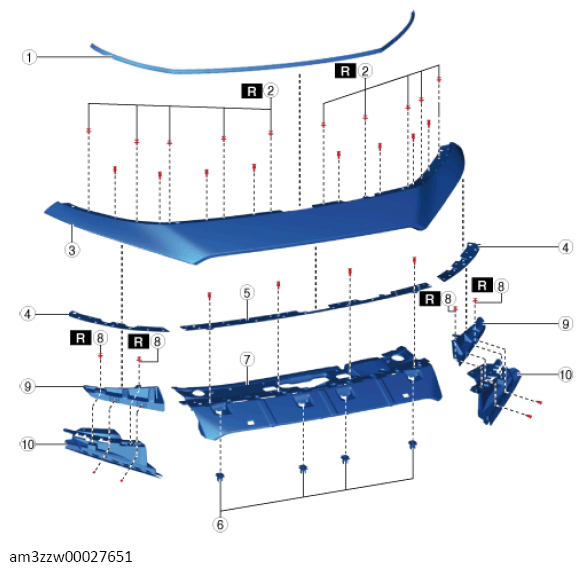

   PARTS DESCRIPTION



   1	Parting seal weatherstrip
   2	Rivet A (See RIVET REMOVAL NOTE .)
   3	Upper grille
   4	Set plate A
   5	Set plate B
   6	Locator pin
   7	Bracket A
   8	Rivet B (See RIVET REMOVAL NOTE .)
   9	Bracket B
   10	Bracket C

2. Assemble in the reverse order of disassembly.
