Trunk Covering Installation Note

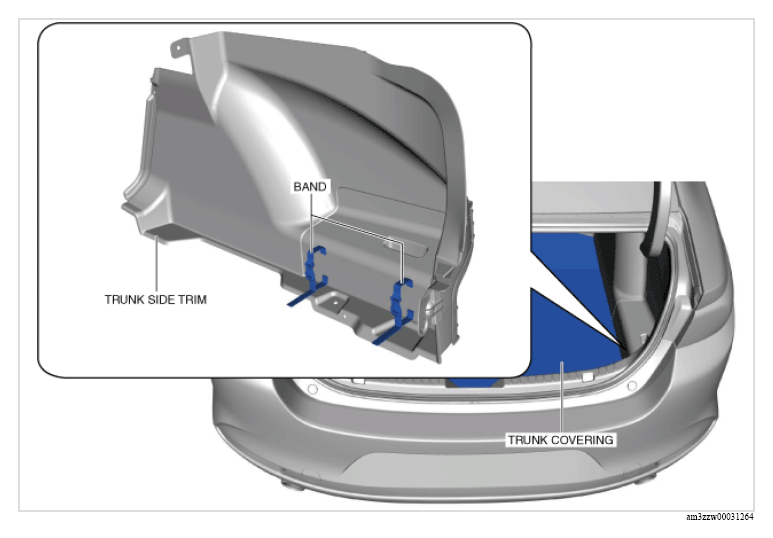

  1. After installing the trunk covering, pull out the trunk side trim bands above the trunk covering. (with band only)
    G13179548Courtesy of MAZDA MOTORS CORP.
