Trunk Lid Handle Removal/Installation

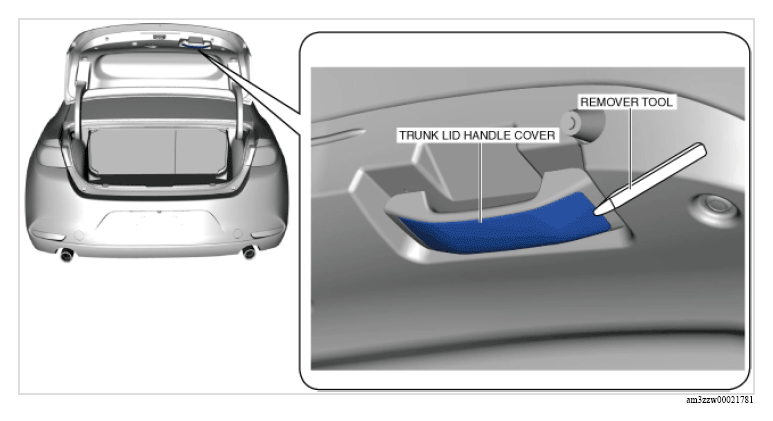

  1. Insert a remover tool into the position shown in the figure.
    G13179555Courtesy of MAZDA MOTORS CORP.

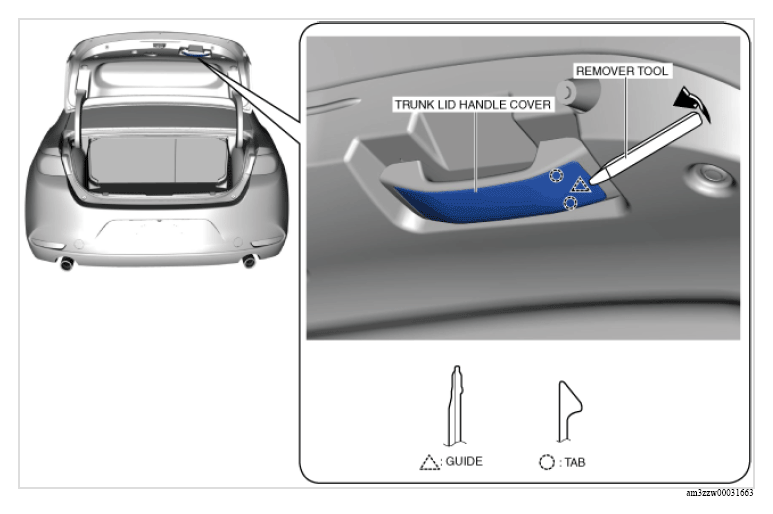

  2. Move the remover tool in the direction of the arrow shown in the figure and detach the tabs and guide.
    G13179556Courtesy of MAZDA MOTORS CORP.

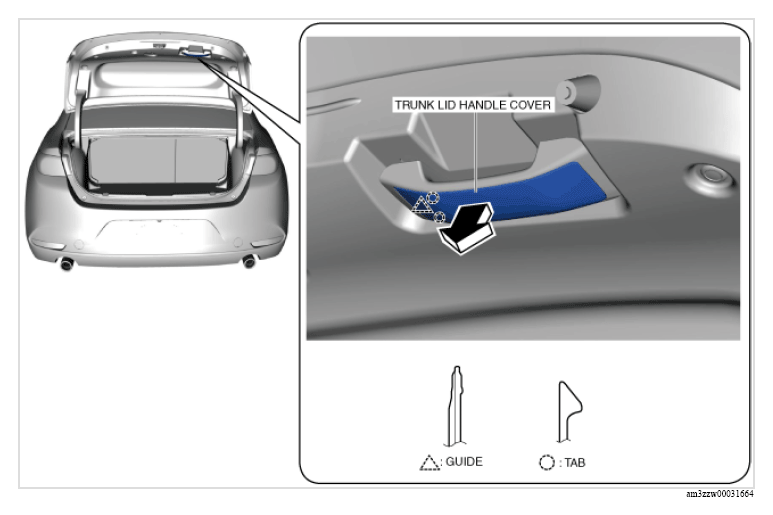

  3. Remove the trunk lid handle cover in the direction of the arrow shown in the figure while detaching the tabs and guide.
    G13179557Courtesy of MAZDA MOTORS CORP.

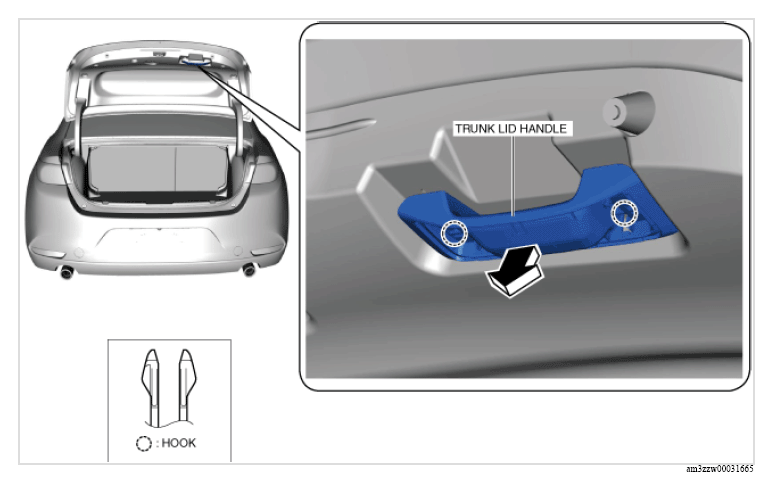

  4. Remove the trunk lid handle in the direction of the arrow shown in the figure while detaching the hooks.
    G13179558Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
