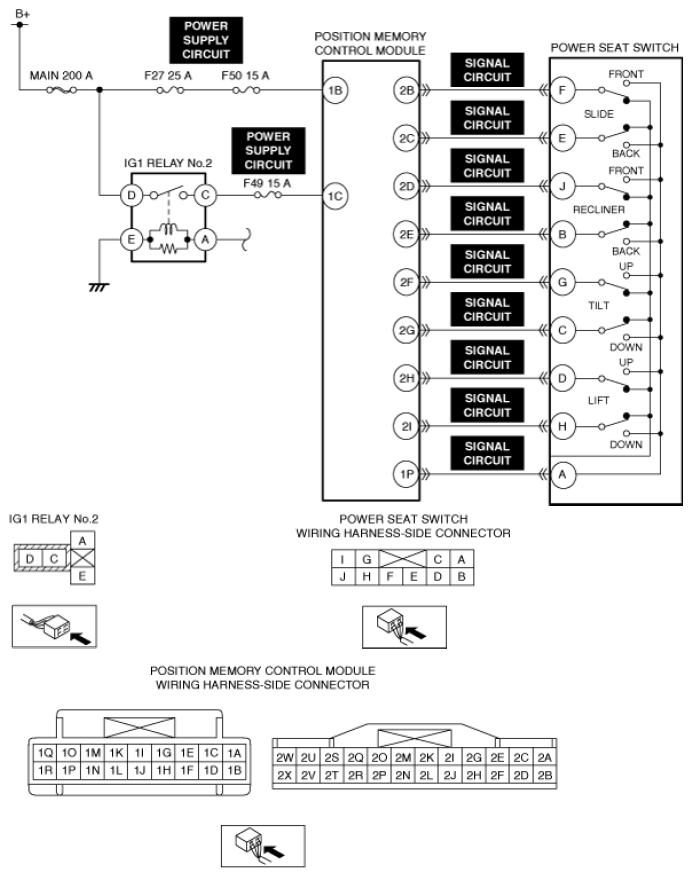

Power Seat System Does Not Operate: Outline
POWER SEAT SYSTEM DOES NOT OPERATE DESCRIPTION AND POSSIBLE CAUSE
| Description |
- The power seat does not operate even though the power seat switch is operated.
|
| Possible cause |
- Connector or terminal malfunction of the following parts:
- Position memory control module
- Power seat switch
- Short or open circuit to ground in the following wiring harnesses
- Position memory control module power supply circuit
- Power seat switch signal circuit
- Power seat switch malfunction
- Position memory control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
