Quick Diagnostic Chart

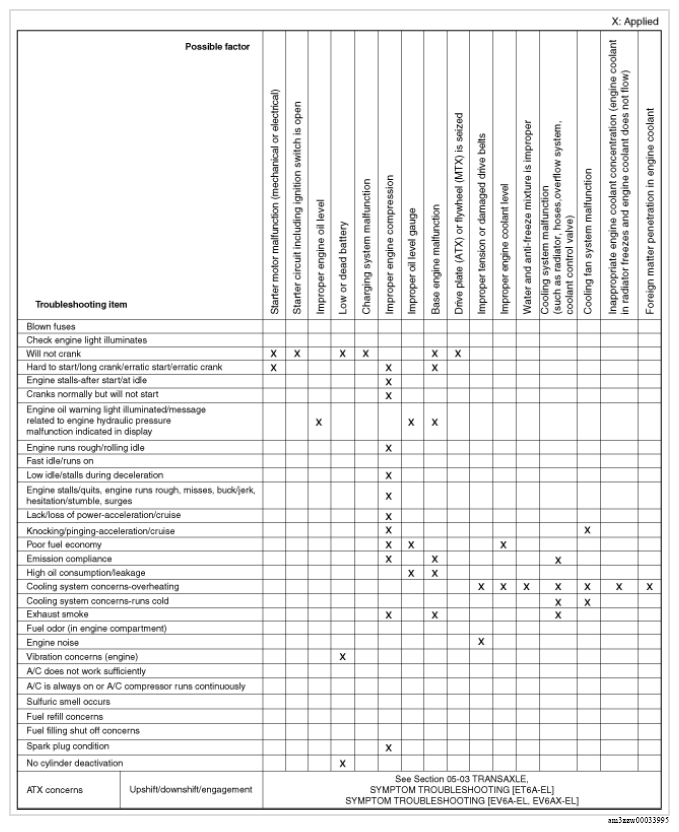

G12726681

Courtesy of MAZDA MOTORS CORP.

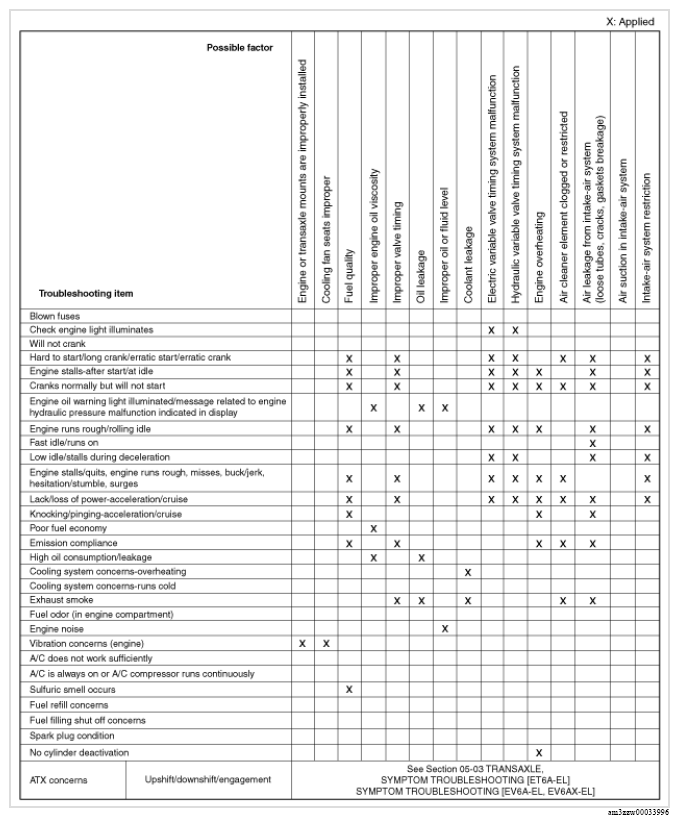

G12726682

Courtesy of MAZDA MOTORS CORP.

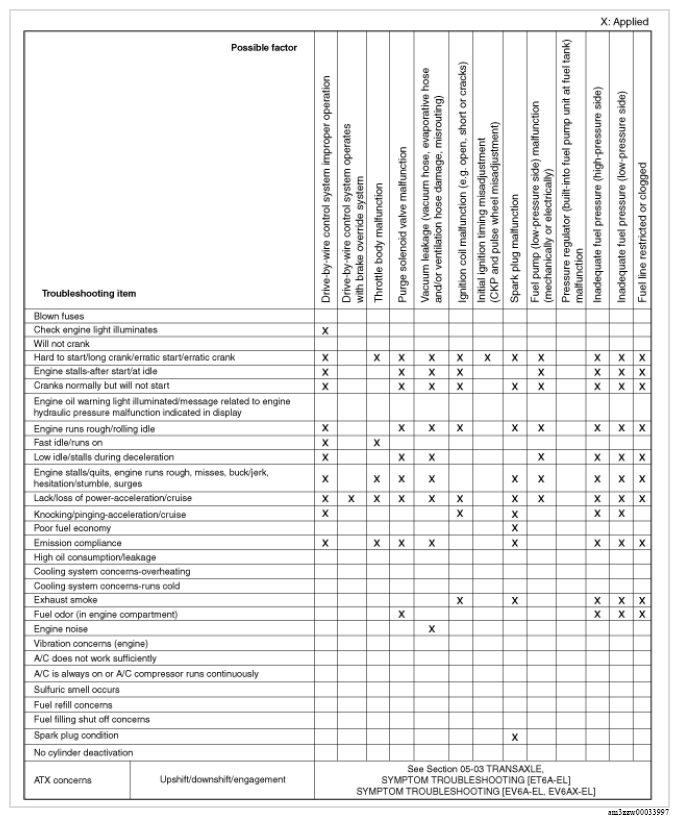

G12726683

Courtesy of MAZDA MOTORS CORP.

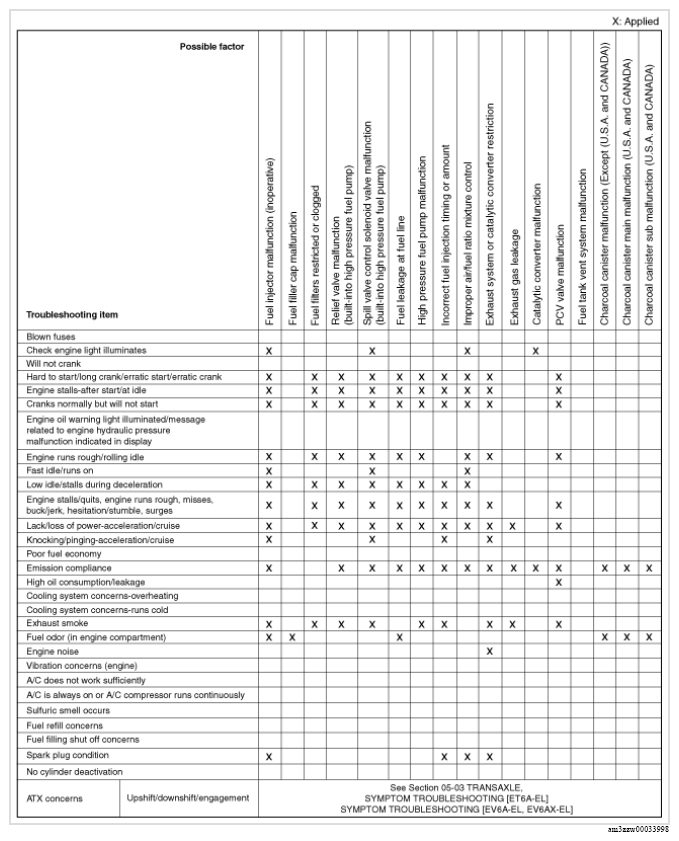

G12726684

Courtesy of MAZDA MOTORS CORP.

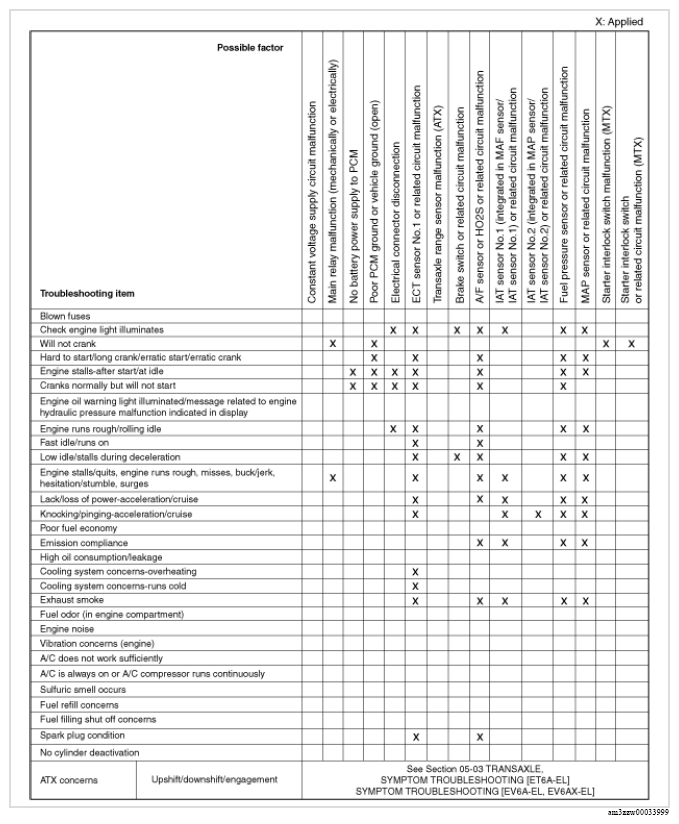

G12726685

Courtesy of MAZDA MOTORS CORP.

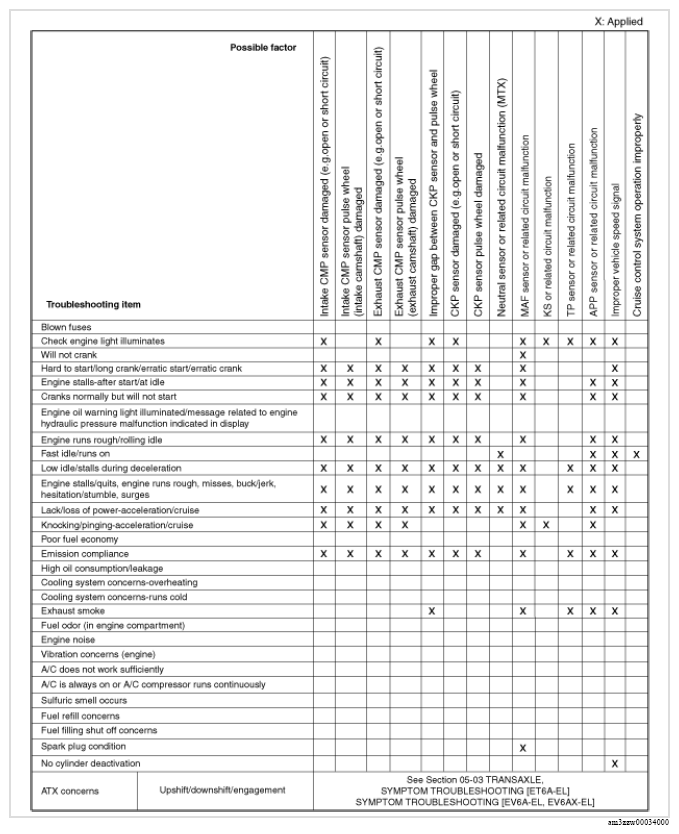

G12726686

Courtesy of MAZDA MOTORS CORP.

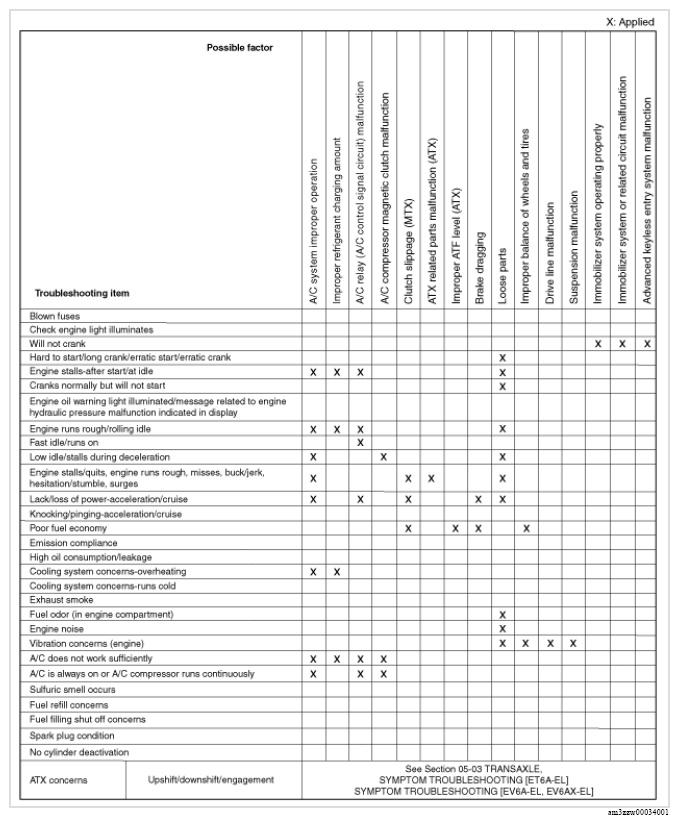

G12726687

Courtesy of MAZDA MOTORS CORP.

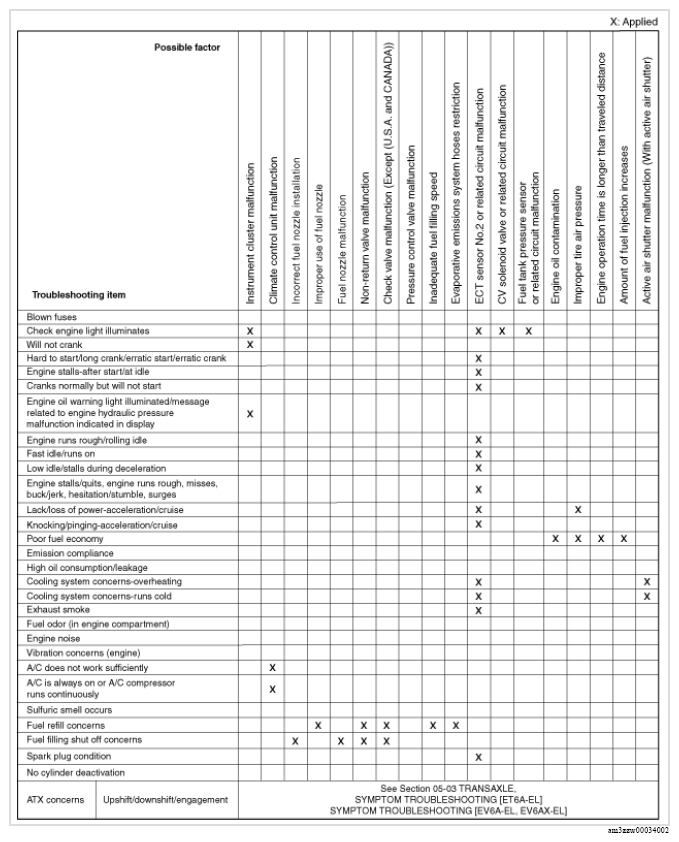

G12726688

Courtesy of MAZDA MOTORS CORP.

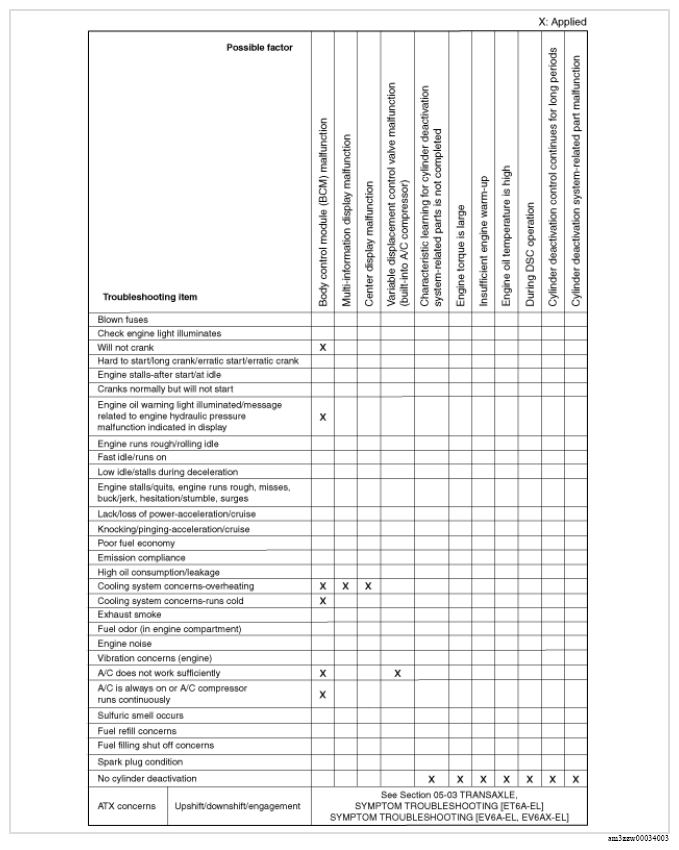

G12726689

Courtesy of MAZDA MOTORS CORP.
