Spacer Installation Note

WARNING: This page is about a different variant/trim than selected.

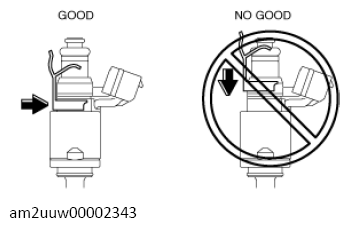

  1. Install the spacer to the fuel injector while being careful of the spacer installation direction and position.
G13557267Courtesy of MAZDA MOTORS CORP.
