Fuel Pump Unit Disassembly/Assembly: AWD
WARNING: This page is about a different variant/trim than selected.
 Courtesy of MAZDA MOTORS CORP.
|

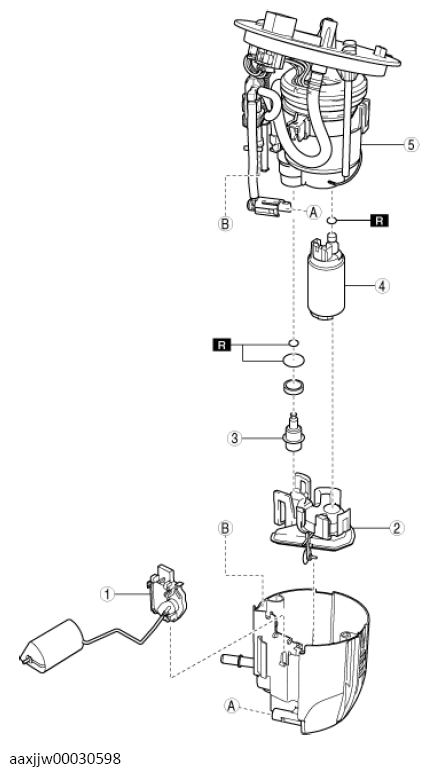

PART DESCRIPTION
| 1 |
Fuel gauge sender unit |
| 2 |
Fuel filter (low-pressure) |
| 3 |
Pressure regulator |
| 4 |
Fuel pump |
| 5 |
Fuel filter (high-pressure) |
