Electric Variable Valve Timing Motor/Driver Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
Replacement Part
| O-ring Quantity: 1 Location of use: Electric variable valve timing motor/driver |
WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.
CAUTION:
- Applying excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the electric variable valve timing motor/driver may cause a malfunction. When servicing, be careful not to apply excessive force to the electric variable valve timing motor/driver using other parts or tools.
- Do not disassemble the electric variable valve timing motor/driver because it is a precision unit.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the No. 3 engine mount. (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

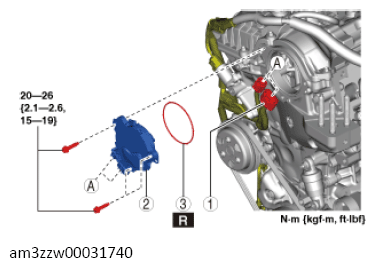

PART DESCRIPTION
| 1 | Electric variable valve timing motor/driver connector |
| 2 | Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSTALLATION NOTE .) |
| 3 | O-ring |
