Engine Disassembly/Assembly: Notes

WARNING: This page is about a different variant/trim than selected.

Special Service Tool (SST)

  1. Mazda SST number
  2. Global SST number
  1. 49 UN30 3050
  2. 303-050

Engine lifting bracket
G13712707Courtesy of MAZDA MOTORS CORP.
  1. 49 L017 5A0
  2. -

Support hanger
G13712708Courtesy of MAZDA MOTORS CORP.

Replacement Part

Gasket
Quantity: 1
Location of use: Oil filter body
CAUTION:
  • When the transaxle is installed, do not suspend the engine. Otherwise, the SST installation area of the cylinder head may be damaged due to excess weight. Only suspend the engine after separating the engine and transaxle.
  • Applying excessive force (force of 100 N {10.2 kgf, 22.5 lbf} or more) to the electric variable valve timing motor/driver may cause a malfunction. When servicing, be careful not to apply excessive force to the electric variable valve timing motor/driver using other parts or tools.
  1. To enable to install the SST, disconnect the clip shown in the figure and set the wiring harness aside.
    G13174517Courtesy of MAZDA MOTORS CORP.
  2. Install the SST and the following bolt to the position shown in the figure.

    Engine front side

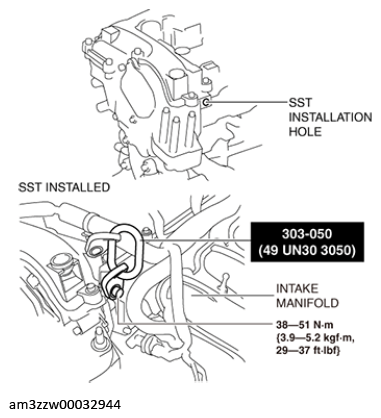

    Fig 1: Intake Manifold, SST Bolt With Torque Specification (Engine Front Side)
    G13174518Courtesy of MAZDA MOTORS CORP.

    Engine rear side

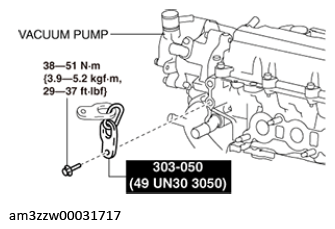

    Fig 2: Vacuum Pump, SST Bolt With Torque Specification (Engine Rear Side)
    G13174519Courtesy of MAZDA MOTORS CORP.

    Bolt:

    part number 99794 1025 or an M10 x 1.25, length 25 mm {0.98 in}

  3. Engage the hooks of the SST (49 L017 5A0) to the SST (49 UN30 3050).
    G13174520Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Do not lift up the engine.
  4. To ensure the safety of the work (control engine and transaxle sway), set a hoist as shown in the figure.

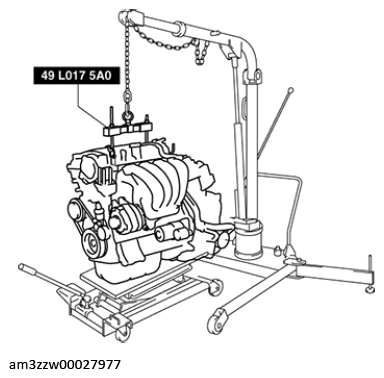

    G13174521Courtesy of MAZDA MOTORS CORP.
  5. Remove the insulator shown in the figure.

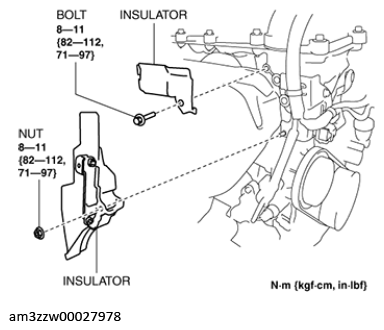

    Fig 3: Insulator, Nut And Bolt With Torque Specification
    G13174522Courtesy of MAZDA MOTORS CORP.
  6. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  7. Remove the exhaust manifold bracket No. 1. (See EXHAUST MANIFOLD BRACKET NO. 1 REMOVAL NOTE .) (See EXHAUST MANIFOLD BRACKET NO. 1 INSTALLATION NOTE .)
  8. Remove the bracket No. 1 (drive shaft bracket). (See FRONT DRIVE SHAFT REMOVAL/INSTALLATION [(US)] .)
  9. Remove the transfer bracket and transfer. (AWD) (See TRANSFER REMOVAL/INSTALLATION [EV6AX-EL] .)
  10. Remove the starter. (See STARTER REMOVAL/INSTALLATION .)
  11. Remove the coolant control valve. (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION .)
  12. Fix the drive plate using the crankshaft pulley lock bolt. (ATX)
  13. Remove the torque converter installation nut from the starter installation hole. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION (MTX)MANUAL TRANSAXLE REMOVAL/INSTALLATION .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ET6A-EL (VINS 7, L, M) (US)) (2WD, ATX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (EV6AX-EL) (AWD, ATX).)
  14. Disconnect the engine and transaxle, and lower only the engine from the engine lifter. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION MANUAL TRANSAXLE REMOVAL/INSTALLATION (MTX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (ET6A-EL (VINS 7, L, M) (US)) (2WD, ATX).) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION (EV6AX-EL) [EV6AX-EL] (AWD, ATX).)
  15. Remove the generator. (See GENERATOR REMOVAL/INSTALLATION .)
  16. Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  17. Remove the oil separator. (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION .)
  18. Remove the knock sensor (KS). (See KNOCK SENSOR (KS) REMOVAL/INSTALLATION .)
  19. Remove the fuel injectors. (See FUEL INJECTOR REMOVAL/INSTALLATION .)
  20. Remove the camshaft position (CMP) sensor. (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION .)
  21. Remove the vacuum pump. (See VACUUM PUMP REMOVAL/INSTALLATION .)
  22. Remove the high pressure fuel pump and rear housing. (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION .)
  23. Remove the electric variable valve timing motor/driver. (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION .)
  24. Remove the oil filter. (See OIL FILTER REPLACEMENT .)
  25. Remove the engine oil solenoid valve. (See ENGINE OIL SOLENOID VALVE REMOVAL/INSTALLATION .)
  26. Remove the engine oil temperature sensor/engine oil pressure sensor. (See ENGINE OIL TEMPERATURE SENSOR/ENGINE OIL PRESSURE SENSOR REMOVAL/INSTALLATION .)
  27. Remove the crankshaft position (CKP) sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION .)
  28. Remove the dipstick.
  29. Remove the ignition coil/ion sensors. (See IGNITION COIL/ION SENSOR REMOVAL/INSTALLATION .)
  30. Remove the wiring harness bracket shown in the figure.

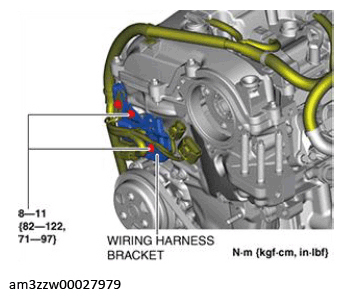

    Fig 4: Wiring Harness Bracket Bolts With Torque Specification
    G13174523Courtesy of MAZDA MOTORS CORP.
  31. Remove the wiring harness bracket and wiring harness protector shown in the figure.

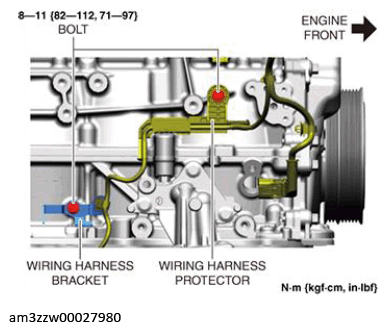

    Fig 5: Wiring Harness Bracket And Protector Bolts With Torque Specification
    G13174524Courtesy of MAZDA MOTORS CORP.
  32. Remove the emission harness.
  33. Remove the water pump drive belt. (See DRIVE BELT REMOVAL/INSTALLATION .)
  34. Remove the water inlet pipe and flange component. (See CYLINDER HEAD GASKET REPLACEMENT .)
  35. Remove the water pump. (See WATER PUMP REMOVAL/INSTALLATION .)
  36. Remove the clutch cover and clutch disc. (MTX) (See CLUTCH UNIT REMOVAL/INSTALLATION [C66M-R] .)
  37. Remove the short cord of the engine oil level sensor. (See ENGINE OIL LEVEL SENSOR REMOVAL/INSTALLATION .)
  38. Remove in the order indicated in the table
  39. Assemble in the reverse order of disassembly.

    Exhaust side

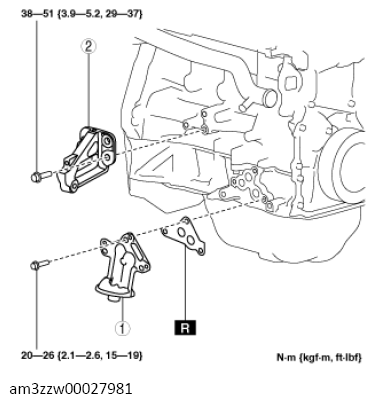

    Fig 6: Oil Filter Body, Exhaust Manifold Bracket Components With Torque Specification (Exhaust Side)
    G13712717Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Oil filter body
    (See EXHAUST MANIFOLD BRACKET INSTALLATION NOTE .)
    2 Exhaust manifold bracket
    (See EXHAUST MANIFOLD BRACKET NO. 1 REMOVAL NOTE .)
