Idler Disassembly/Assembly: Notes
WARNING: This page is about a different variant/trim than selected.
Replacement Part
PART DESCRIPTION
| Bolt Quantity: 1 Location of use: Magnetic clutch |
NOTE:
- The idler is only installed to vehicles without A/C.
- Disassemble in the order indicated in the table.PART DESCRIPTION

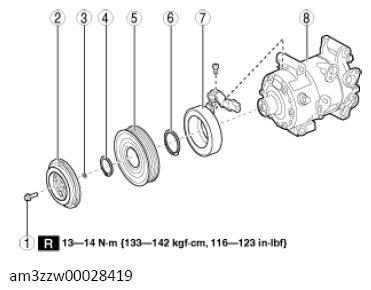

1 Bolt
(See BOLT REMOVAL/INSTALLATION NOTE .)2 Pressure plate 3 Shim 4 Snap ring 5 idler pulley 6 Snap ring 7 Stator 8 Idler body - Assemble in the reverse order of disassembly.
- Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT .)
