Plug Hole Plate Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

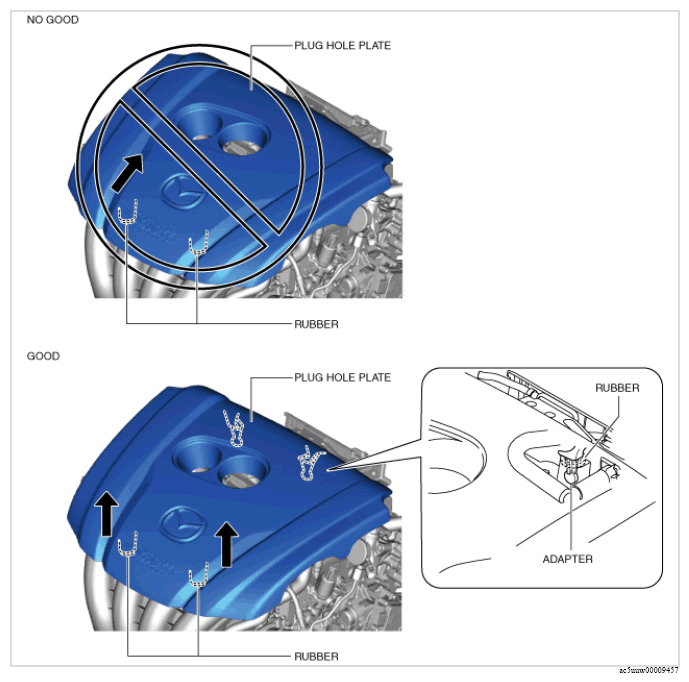

If the rubber on only one side of the plug hole plate front is lifted up, it could damage the rear adapters shown in the figure. When removing the plug hole plate, lift up the rubber at the front of the plug hole plate at the same time.

Courtesy of MAZDA MOTORS CORP.
