Coolant Control Valve Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Replacement Part

Gasket
Quantity: 1
Location of use: Coolant control valve

Gasket
Quantity: 1
Location of use: Lower radiator hose component

WARNING:

Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counter clockwise to the first stop. Step back while the pressure escapes.
When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove the PCM component. (See PCM REMOVAL/INSTALLATION .)
Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)

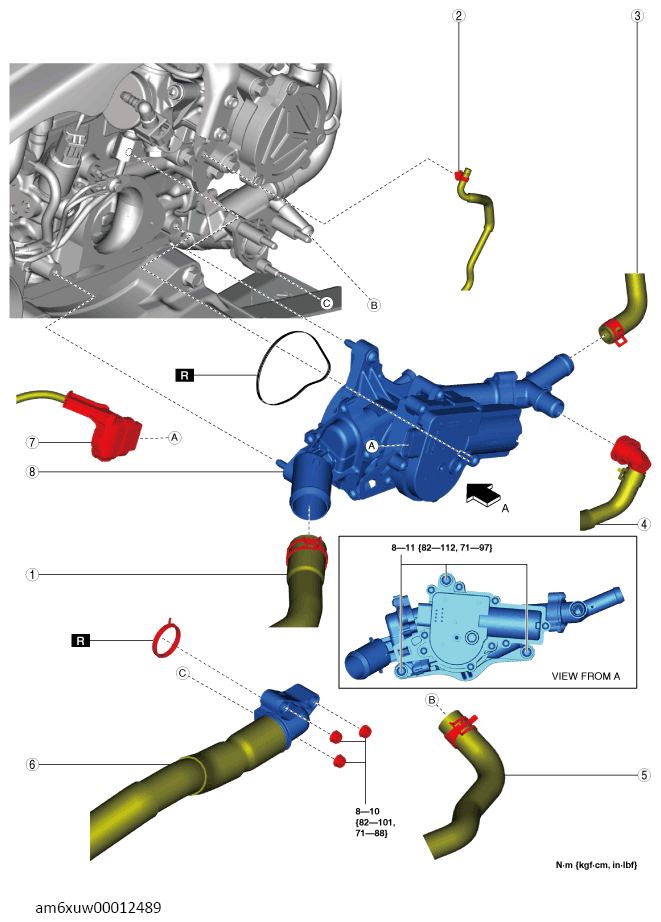

Fig 1: Coolant Control Valve Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Upper radiator hose (See UPPER RADIATOR HOSE REMOVAL NOTE .) (See UPPER RADIATOR HOSE INSTALLATION NOTE .)
2	Clip
3	Heater hose (Coolant control valve side) (See HEATER HOSE INSTALLATION NOTE .)
4	Water hose (Coolant control valve side)
5	Water hose (Flange side)
6	Lower radiator hose component (See LOWER RADIATOR HOSE COMPONENT REMOVAL NOTE .) (See LOWER RADIATOR HOSE COMPONENT INSTALLATION NOTE .)
7	Coolant control valve connector
8	Coolant control valve (See COOLANT CONTROL VALVE REMOVAL NOTE .) (See COOLANT CONTROL VALVE INSTALLATION NOTE .)
