Radiator Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
WARNING:
- Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.
- Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counter clockwise to the first stop. Step back while the pressure escapes.
- When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the front under cover No. 1 and the front under cover No. 2. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .) (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
- Remove the following parts as a single unit: (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION
.)
- Air hose
- Air cleaner cover
- Air cleaner element
- Air cleaner case
- Fresh-air duct
- Resonance chamber
- Remove the cooling fan component. (See COOLING FAN MOTOR REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)

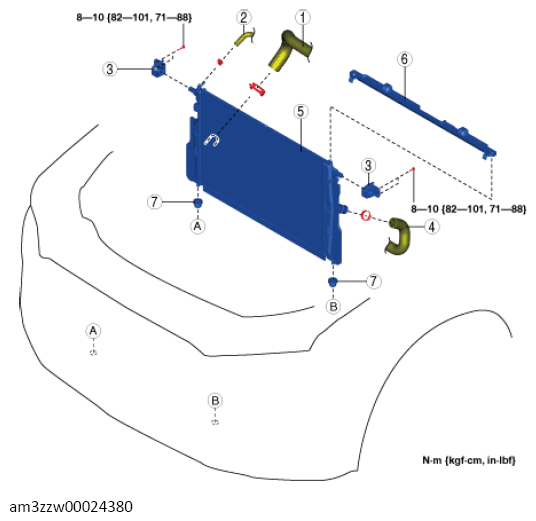

PART DESCRIPTION
| 1 | Upper radiator hose |
| 2 | Water hose |
| 3 | Radiator mount bracket |
| 4 | Lower radiator hose |
| 5 | Radiator (See RADIATOR REMOVAL NOTE .) |
| 6 | Radiator seal |
| 7 | Lower mount rubber |
