Throttle Body Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the bolt shown in the figure.

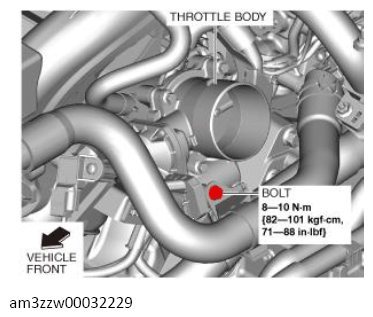

    Fig 1: Throttle Body Bolt With Torque Specification
    G13557124Courtesy of MAZDA MOTORS CORP.
  2. Remove the throttle body.
