Compression pressure
WARNING: This page is about a different variant/trim than selected.
 Courtesy of MAZDA MOTORS CORP.
|

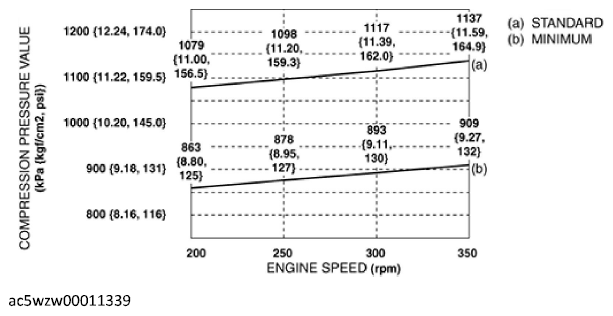

Standard: Refer to the graph.
Minimum: Refer to the graph.
Maximum difference between cylinders: 149 kPa {1.52 kgf/cm 2
, 21.6 psi} [250 rpm]
