Up Switch: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

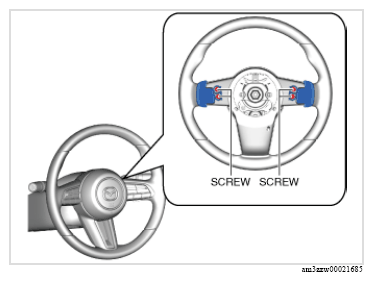

  2. Remove the screw.
    G13176680Courtesy of MAZDA MOTORS CORP.

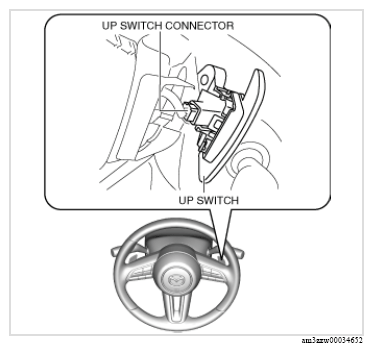

  3. Disconnect the up switch connector.
    G13176681Courtesy of MAZDA MOTORS CORP.
  4. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  5. Verify that the continuity between up switch component terminals A and B.
    G13716008Courtesy of MAZDA MOTORS CORP.
    • If there is any malfunction, replace the up switch.
