DTC B148E-02: Front Camera Circuit Malfunction [360°View Monitor Control Module]: Outline
DTC B148E:02 [360°VIEW MONITOR CONTROL MODULE] DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |

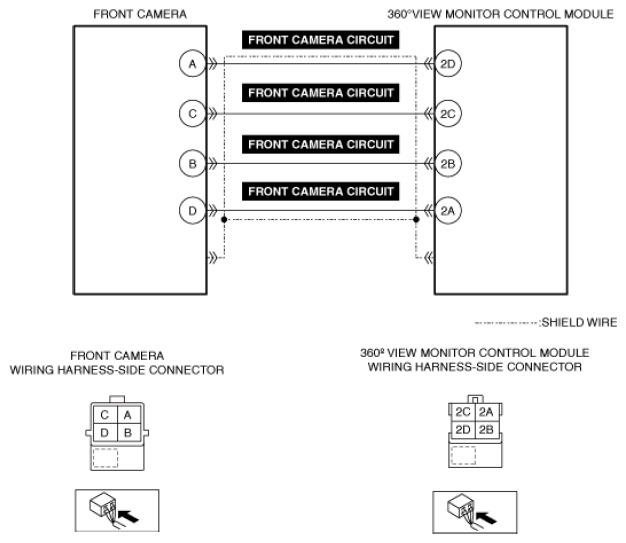

Front camera circuit malfunction |
| Detection condition |
- The 360°view monitor control module detects a malfunction in the front camera circuit for 5 s.
|
| Fail-safe |
(See DTC TABLE [360°VIEW MONITOR CONTROL MODULE (US)] .) |
| Possible cause |
- Front camera connector malfunction
- 360°view monitor control module connector malfunction
- Short to ground in front camera circuit
- Short to power supply in front camera circuit
- Open circuit in front camera circuit
- Front camera malfunction
- 360°view monitor control module malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
