Center Display Disassembly/Assembly

  1. Remove the connectivity master unit (CMU). (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.

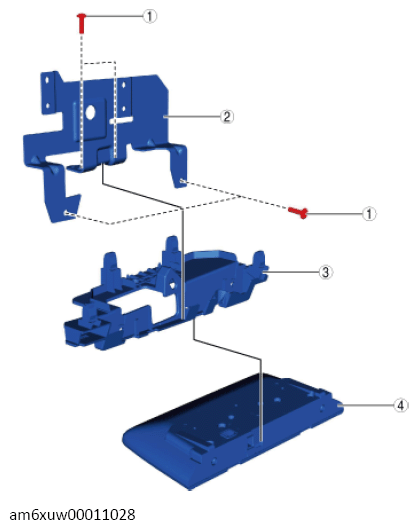

    G13725498Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Screw
    2 Bracket
    3 Audio panel
    4 Center display
  3. Assemble in the reverse order of disassembly.
