Connectivity Master Unit (CMU) Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

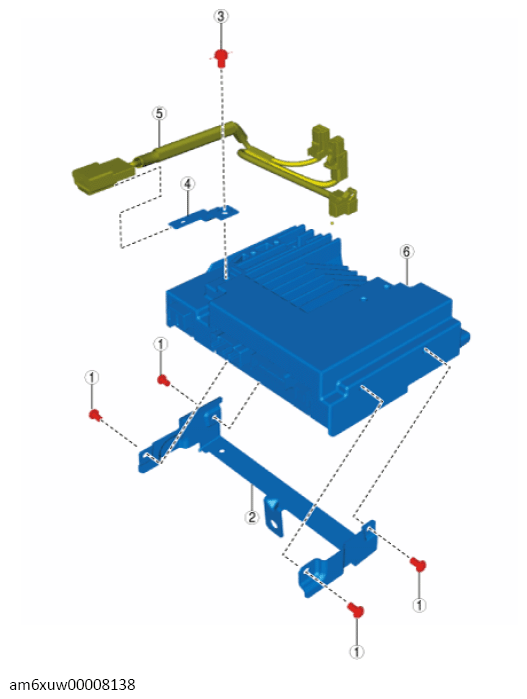

    G13725508Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Screw A
    2 Bracket A
    3 Screw B
    4 Bracket B
    5 Short-cord
    (See SHORT-CORD ASSEMBLY NOTE .)
    6 Connectivity master unit (CMU)
  2. Assemble in the reverse order of disassembly.
