Dashboard Disassembly/Assembly

Disassemble in the order indicated in the table.

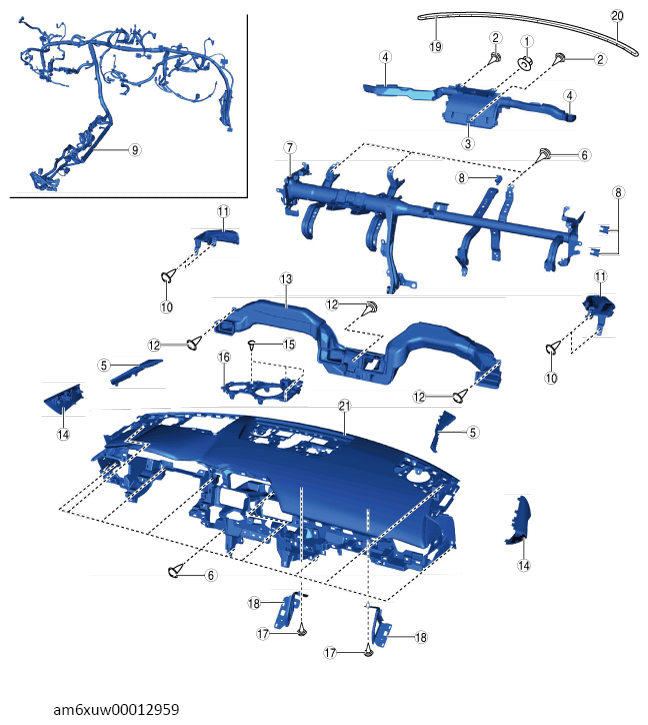

G13725131

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Nut
2	Screw
3	Center defroster
4	Demister duct No. 1
5	Garnish
6	Screw
7	Dashboard member
8	Member junction
9	Wiring harness
10	Screw
11	Demister duct No. 2
12	Screw
13	Center duct
14	Side cover
15	Screw
16	Center hole cover
17	Screw
18	Dashboard bracket
19	Seal tape No. 1
20	Seal tape No. 2
21	Dashboard

Assemble in the reverse order of disassembly.
NOTE:
- When replacing the dashboard, remove the following parts:
  1. Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
  2. Side speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
  3. Front center speaker (with Bose^® ) (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
  4. Front side speaker (with Bose^® ) (See FRONT SIDE SPEAKER REMOVAL/INSTALLATION .)
  5. Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
  6. Keyless antenna (See KEYLESS ANTENNA REMOVAL/INSTALLATION .)
  7. Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION .)
  8. Passenger-side air bag module (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
  9. Active driving display (with active driving display) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
  10. Meter hood No. 2 (with active driving display) (See METER HOOD REMOVAL/INSTALLATION .)
  11. Parking assist unit (with parking sensor) (See PARKING ASSIST UNIT REMOVAL/INSTALLATION .)
  12. Front parking sensor buzzer (with parking sensor) (See FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION .)
