Lower Panel Removal/Installation: Driver-side

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Hood release lever (See HOOD LATCH AND RELEASE LEVER REMOVAL/INSTALLATION .)
4. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
5. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
Partially peel back the seaming welt.

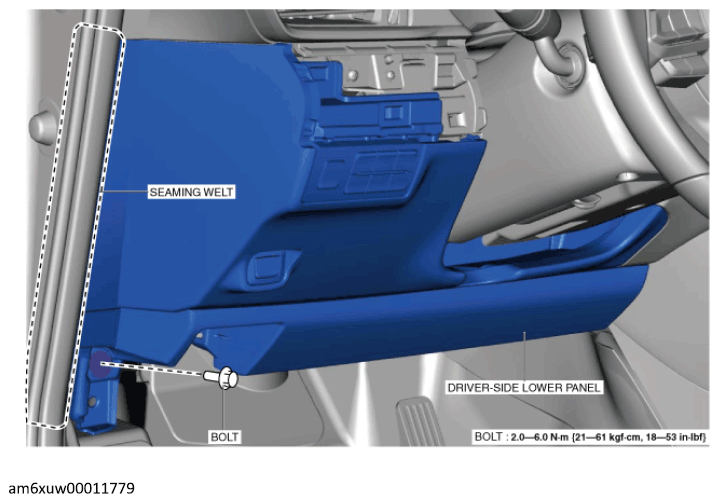

Fig 1: Driver-Side Lower Panel Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolt.

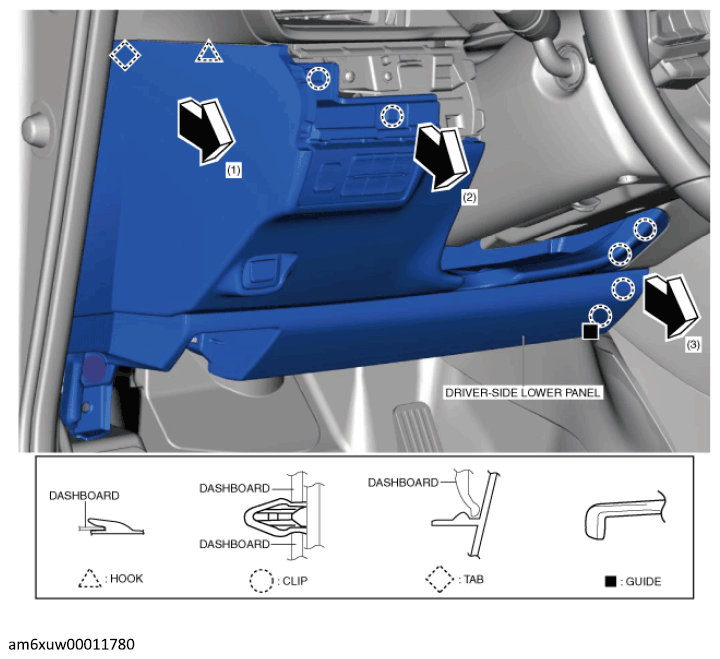

Move the driver-side lower panel in the order of arrows (1), (2) and (3) shown in the figure, and detach hook, clips, tab, and guide.

Courtesy of MAZDA MOTORS CORP.

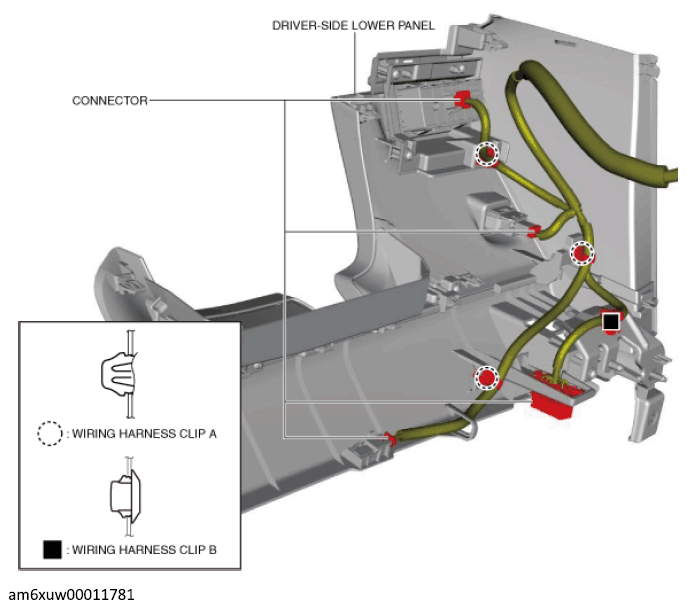

Disconnect the connectors and remove wiring harness clips A and B.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
NOTE:
- When replacing the driver-side lower panel, remove the following parts:
  1. Pocket light (with pocket light) (See POCKET LIGHT REMOVAL/INSTALLATION .)
  2. Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
  3. Trunk lid opener switch (with trunk lid opener switch) (See TRUNK LID OPENER SWITCH REMOVAL/INSTALLATION .)
