Vehicle Front Side

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

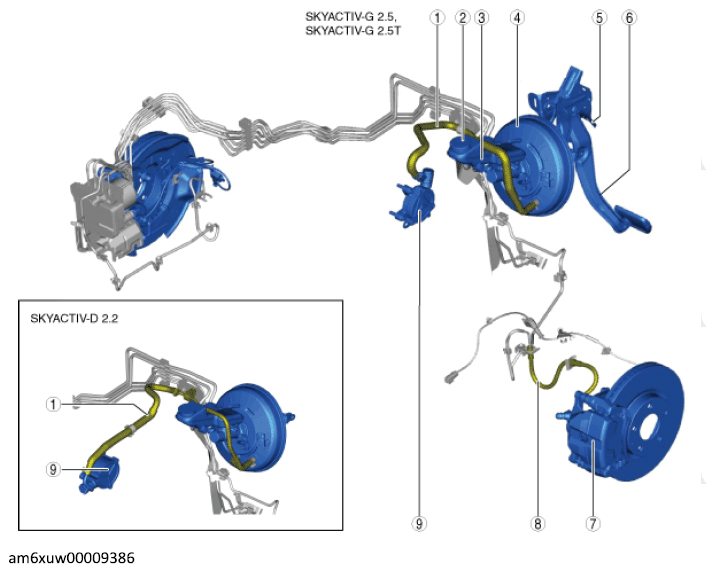

Fig 1: Conventional Brake System Components Location - Vehicle Front Side

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Vacuum line (See VACUUM LINE INSPECTION (VIN 5, VIN M) .) (See VACUUM LINE INSPECTION (VIN Y) .) (See VACUUM HOSE REMOVAL/INSTALLATION (VIN 5, VIN M) .) (See VACUUM HOSE REMOVAL/INSTALLATION (VIN Y) .)
2	Brake fluid (See BRAKE FLUID INSPECTION .) (See BRAKE FLUID AIR BLEEDING .)
3	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION .) (See BRAKE FLUID LEVEL SENSOR INSPECTION .)
4	Power brake unit (See POWER BRAKE UNIT INSPECTION .) (See POWER BRAKE UNIT REMOVAL/INSTALLATION .)
5	Brake switch (See BRAKE SWITCH INSPECTION .)
6	Brake pedal (See BRAKE PEDAL INSPECTION .) (See BRAKE PEDAL REMOVAL/INSTALLATION .)
7	Front brake (disc) (See FRONT BRAKE INSPECTION .) (See FRONT BRAKE DISC REMOVAL/INSTALLATION .) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION .) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION .) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY .) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION .)
8	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION .)
9	Vacuum pump (See VACUUM PUMP INSPECTION .) (See VACUUM PUMP REMOVAL/INSTALLATION (VIN 5, VIN M) .) (See VACUUM PUMP REMOVAL/INSTALLATION (VIN Y) .)
