With 360°View Monitor System

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
Partially peel back the floor covering.
Remove the fastener.

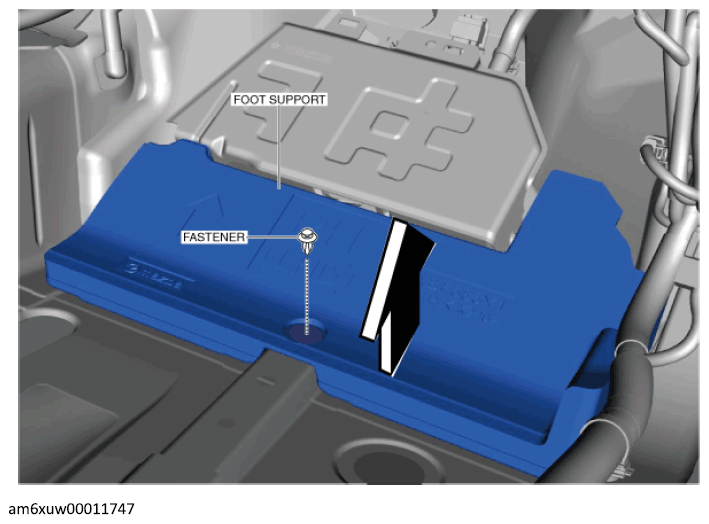

Fig 1: Pulling Foot Support
Courtesy of MAZDA MOTORS CORP.
Pull the foot support in the direction of the arrow and remove it.
Install in the reverse order of removal.
