Rear Console Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper panel component. (See UPPER PANEL REMOVAL/INSTALLATION .)
Remove the upper console up. (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .)

Disassemble in the order indicated in the table.

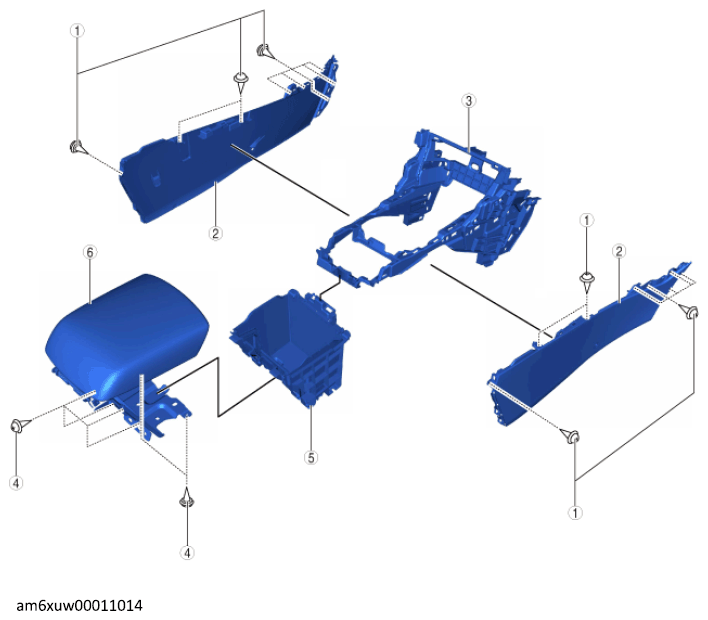

Fig 1: Rear Console Component Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw
2	Side panel (See Side Panel Removal Note .)
3	Rear console bracket
4	Screw
5	Rear console box
6	Rear console lid component

Assemble in the reverse order of disassembly.
