Evaporator Temperature Sensor Assembly Note
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

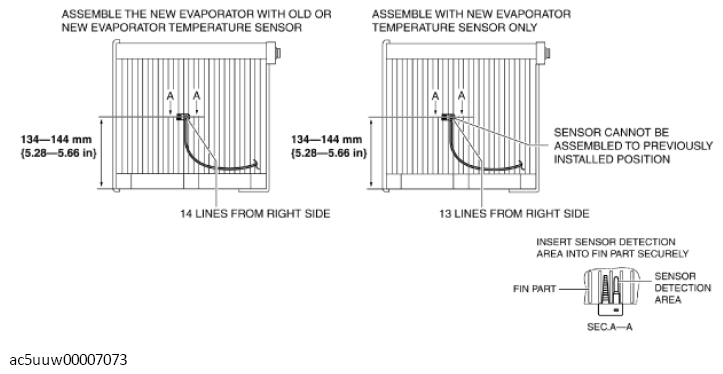

- Assemble the evaporator temperature sensor as shown in the figure below.
CAUTION:
- When installing the evaporator temperature sensor without replacing the evaporator, assemble the evaporator temperature sensor with the installation position slid to the left of the previous position by 1 line. If the evaporator temperature sensor is assembled to the previously installed position, it may not function due to poor contact of the fin surface with the sensor detection area caused by fin deformation.
NOTE:- If an evaporator temperature sensor cannot be correctly positioned on the evaporator, replace the evaporator.
