Foot Light Removal/Installation: Front: Driver-Side

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Disconnect the connector.

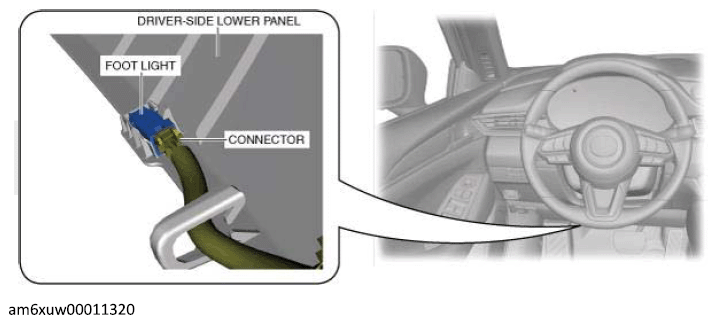

Fig 1: Driver-Side Lower Panel, Foot Light And Connector
Courtesy of MAZDA MOTORS CORP.
Remove the foot light (2) while pressing the tab (1) in the direction of the arrow shown in the figure below.

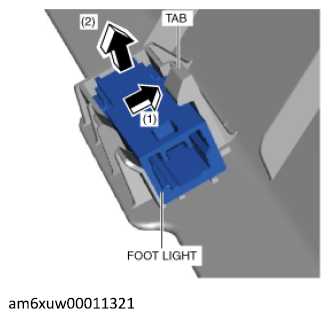

Fig 2: Foot Light
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
