Hazard Warning Switch Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Meter hood cover (See METER HOOD COVER REMOVAL/INSTALLATION .)
    2. Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION .)
    3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Center panel (See CENTER PANEL REMOVAL/INSTALLATION .)

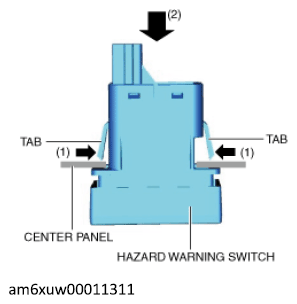

  3. While pressing the hazard warning switch tabs in the direction of the arrows (1) shown in the figure below, press the hazard warning switch in the direction of the arrow (2) shown in the figure below to detach the hazard warning switch tabs from the decoration panel (passenger-side).
    Fig 1: Pressing Hazard Warning Switch Tabs
    G12234911Courtesy of MAZDA MOTORS CORP.
  4. Remove the hazard warning switch.

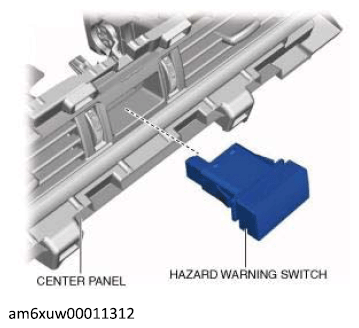

    Fig 2: Hazard Warning Switch And Center Panel
    G12234912Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
