Grommet Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the grommet with the arrow pointed outward the vehicle.

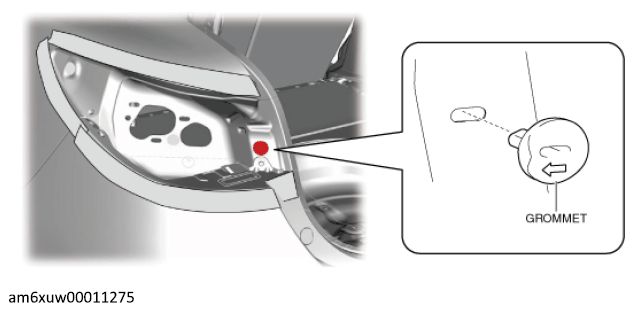

    Fig 1: Grommet
    G12234988Courtesy of MAZDA MOTORS CORP.
