Trunk Compartment Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

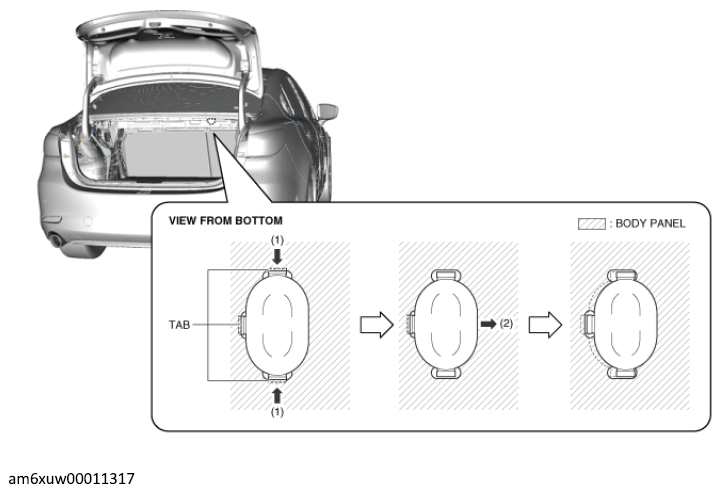

  2. While pressing the lens in the direction of the arrows (1) shown in the figure below, move the lens in the direction of the arrow (2) shown in the figure below to detach the lens tabs from the body panel.
    Fig 1: Pressing Lens
    G12234995Courtesy of MAZDA MOTORS CORP.
  3. Remove the lens.

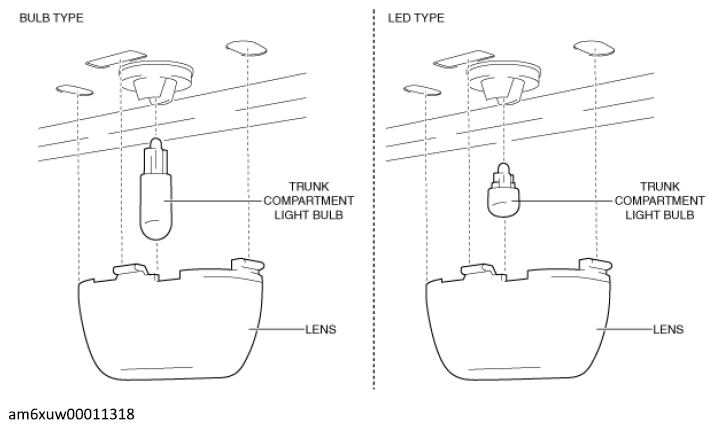

    Fig 2: Trunk Compartment Light Bulb
    G12234996Courtesy of MAZDA MOTORS CORP.
  4. Remove the trunk compartment light bulb.
  5. Install in the reverse order of removal.
