Switch The Power Supply Using The Push Button Start And Start The Engine

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

The power supply switch using the push button start is performed by depressing the clutch pedal (MTX), depressing the brake pedal (ATX), and then pressing the push button start.

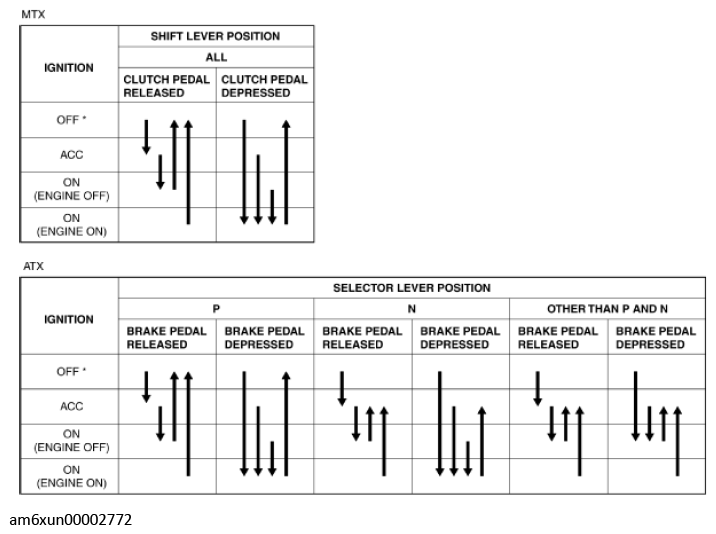

Fig 1: Switching Power Supply Using MTX, ATX And Push Button Start

Courtesy of MAZDA MOTORS CORP.

*: To switch the ignition to ACC or off from ON (engine on), a vehicle speed of 5 km/h {3 mph} or less is required.
