A/C Unit Disassembly/Assembly: Notes

Replacement Part

1. Disassemble in the order indicated in the table.
   CAUTION:

   • If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.

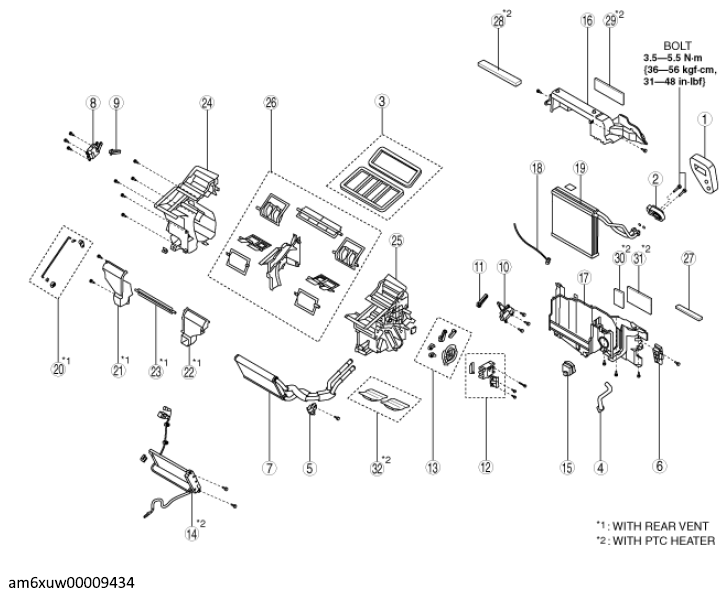

   Fig 1: Exploded View Of A/C Unit Components With Torque Specification

   Courtesy of MAZDA MOTORS CORP.

   X: Applicable-: Not applicable

   PARTS DESCRIPTION



   Step	Part name	Disassembly/assembly of main parts
   		Heater core	Evaporator temperature sensor	Evaporator
   1	Polyurethane foam	X	X	X
   2	Expansion valve	-	-	X
   3	Adhesive polyurethane	-	-	-
   4	Drain hose	-	-	-
   5	Plate (1)	X	X	X
   6	Plate (2)	X	X	X
   7	Heater core	X	X	X
   8	Driver-side air mix actuator	-	-	-
   9	Driver-side air mix link	-	-	-
   10	Passenger-side air mix actuator	-	-	-
   11	Passenger-side air mix link	-	-	-
   12	Airflow mode actuator	-	-	-
   13	Airflow mode link set	-	-	-
   14	PTC heater (with PTC heater)	-	-	-
   15	Blower fan controller	-	-	-
   16	A/C case (1)	-	X	X
   17	A/C case (2)	-	X	X
   18	Evaporator temperature sensor (See EVAPORATOR TEMPERATURE SENSOR ASSEMBLY NOTE .)	-	X	X
   19	Evaporator	-	-	X
   20	Airflow mode link set (with rear vent)	-	-	-
   21	A/C case (rear vent (1)) (with rear vent)	-	-	-
   22	A/C case (rear vent (2)) (with rear vent)	-	-	-
   23	Door damper (with rear vent)	-	-	-
   24	A/C case (3)	-	-	-
   25	A/C case (4)	-	-	-
   26	Door damper	-	-	-
   27	Adhesive polyurethane	-	-	-
   28	Adhesive polyurethane (SKYACTIV-D 2.2)	-	-	-
   29	Rubber (SKYACTIV-D 2.2)	-	-	-
   30	Rubber (SKYACTIV-D 2.2)	-	-	-
   31	Adhesive polyurethane (SKYACTIV-D 2.2)	-	-	-
   32	Thinsulate (SKYACTIV-D 2.2)	-	-	-

2. Assemble in the reverse order of disassembly.
