Airflow Mode Main Link Removal

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    3. Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

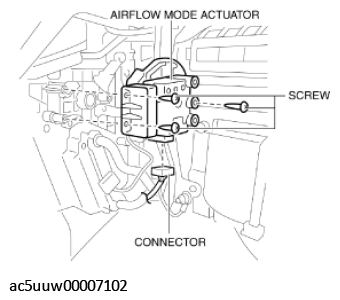

    G11430217Courtesy of MAZDA MOTORS CORP.
  4. Remove the screws.
  5. Remove the airflow mode actuator.
  6. Remove the airflow mode main link.
G13113314Courtesy of MAZDA MOTORS CORP.
