Refrigerant Charging: Notes

CAUTION:

Do not use a different type of refrigerant or charge beyond the specified level. Otherwise, cooling ability will be lowered and the A/C compressor could be damaged.

NOTE:

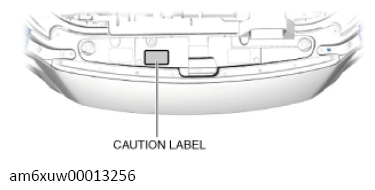

When draining or adding the refrigerant, verify the appropriate refrigerant type and specified amount of refrigerant from the caution label.

Courtesy of MAZDA MOTORS CORP.

ENGINE AND REFRIGERANT TYPE SPECIFICATION

Engine type	Refrigerant type	Regular amount of refrigerant (approx. quantity) (g {OZ})
SKYACTIV-G (VIN M) SKYACTIV-G (VIN Y)	HFC-134a (R-134a)	465-515 {16.5-18.1}
SKYACTIV-G (VIN M) SKYACTIV-G (VIN Y)	HFO-1234yf (R-1234yf)	475-525 {16.8-18.5}
