Insulator Installation Note

  1. Install the fasteners in the order shown in the figure.

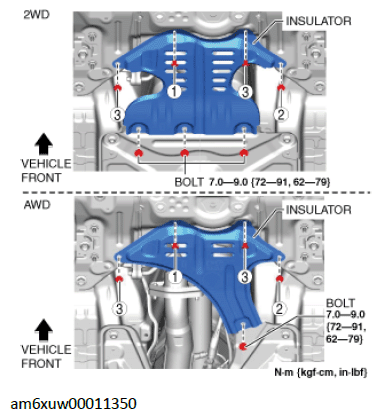

    Fig 1: Insulator Bolts With Torque Specification
    G12232378Courtesy of MAZDA MOTORS CORP.
  2. Install the bolts.
