Front Lower Arm Inspection: Notes
WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
- Inspect the front lower arm for bending or damage.
- If there is any malfunction, replace the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
- Inspect the front lower arm ball joint for excessive play and the dust boot of the front lower arm ball joint for damage.
- If there is any malfunction, replace the front lower arm. (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
- Replace the SST securing bolt with a bolt of a suitable length.
- Rotate and shake the front lower arm ball joint stud 5 times.

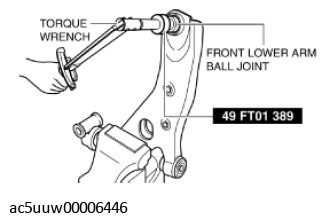

- Install the SST to the front lower arm ball joint stud, and measure the front lower arm ball joint stud starting torque and rotational torque using a torque wrench.
