Solar Radiation Sensor Removal/Installation: Notes

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
Remove the front center speaker. (See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .)
Insert a tape-wrapped flathead screwdriver to the service hole.

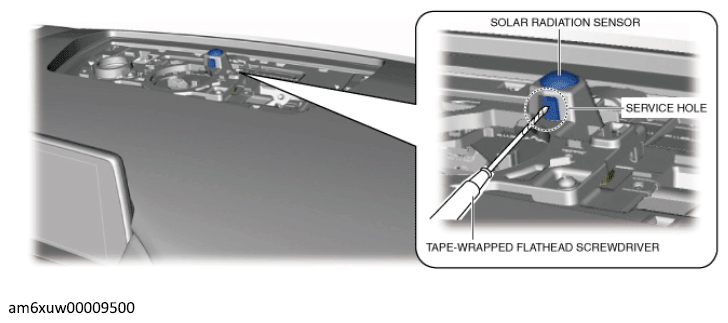

Fig 1: Inserting Tape-Wrapped Flathead Screwdriver To Service Hole
Courtesy of MAZDA MOTORS CORP.
Move the tape-wrapped flathead screwdriver in the direction of the arrow (1), and press out the tab from the dashboard as shown in the figure below.

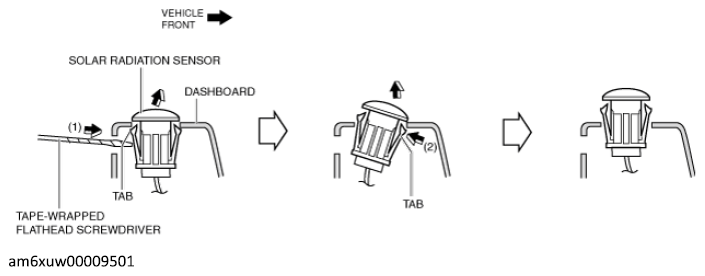

Fig 2: Moving Tape-Wrapped Flathead Screwdriver In Direction
Courtesy of MAZDA MOTORS CORP.
Insert your hand from front center speaker opening and while pressing the solar radiation sensor tab in the direction of arrow (2) shown in the figure below, press out the solar radiation sensor from the dashboard.
Disconnect the connector.

Fig 3: Pressing Solar Radiation Sensor Tab In Direction
Courtesy of MAZDA MOTORS CORP.
Remove the solar radiation sensor.
Install in the reverse order of removal. (See Solar Radiation Sensor Installation Note .)
