Blower Unit Disassembly/Assembly
CAUTION:
- Apply only the specified grease to the link. Otherwise abnormal noise or improper operation may result.
- Disassemble in the order indicated in the table.PARTS DESCRIPTION

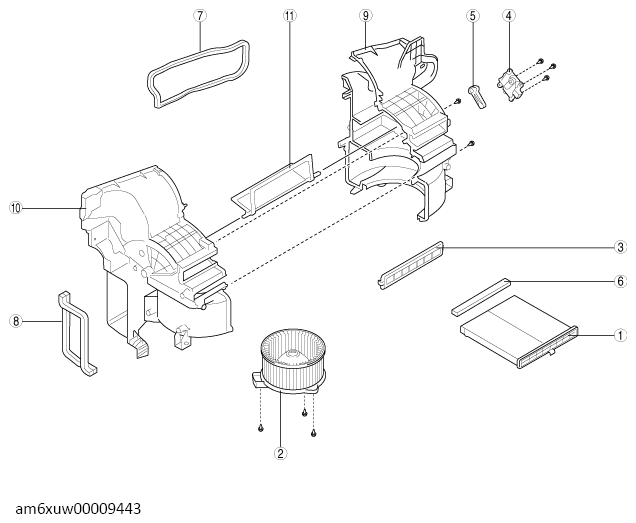

1 Air filter 2 Blower motor 3 Cover 4 Air intake actuator 5 Air intake link 6 Polyurethane (1) 7 Polyurethane (2) 8 Polyurethane (3) 9 Blower case (1) 10 Blower case (2) 11 Air intake door - Assemble in the reverse order of disassembly.
